1.8m Deep – Wall Mounted Garden Pergola

Transform your garden or patio into a stylish living area with a pergola from the UK’s leading pergola manufacturers.

Each Wall Mounted Pergola is carefully designed with ease of construction in mind and the heavy duty redwood corner posts feature a central notch design that houses the side runners. The rafters are also notched at either end to aid correct alignment and joint integrity.

Also available in multiple depths – 1.8m, 2.4m, 3m, 3.6m, 4.2m and 4.8m (and custom sizes upon request) – For these sizes please see our other listings.

Along with all bolt down and spiked feet purchases we supply a flat drill bit. After you have cut your posts to the desired length, please use the drill bit to drill a hole into the centre of the bottom of the post – this is to locate your post onto the bolt down or spiked foot.

Features:

• Easy assembly with the minimum of tools required.
• High quality pressure treated Northern European Redwood.
• Solid 95mm x 95mm corner posts.
• 34mm x 140mm Runners and Rafters.
• Corrosion treated, heavy duty fixings.
• Custom sizes available.

Dimensions:

• Height: 2700mm
• Width: 1800mm (Overall length of Rafters)
• Length: 1800mm, 2400mm, 3000mm, 3600mm, 4200mm, 4800mm, 5400mm, 6000mm, 6600mm, 7200mm or 7800mm (Overall length of Runners)

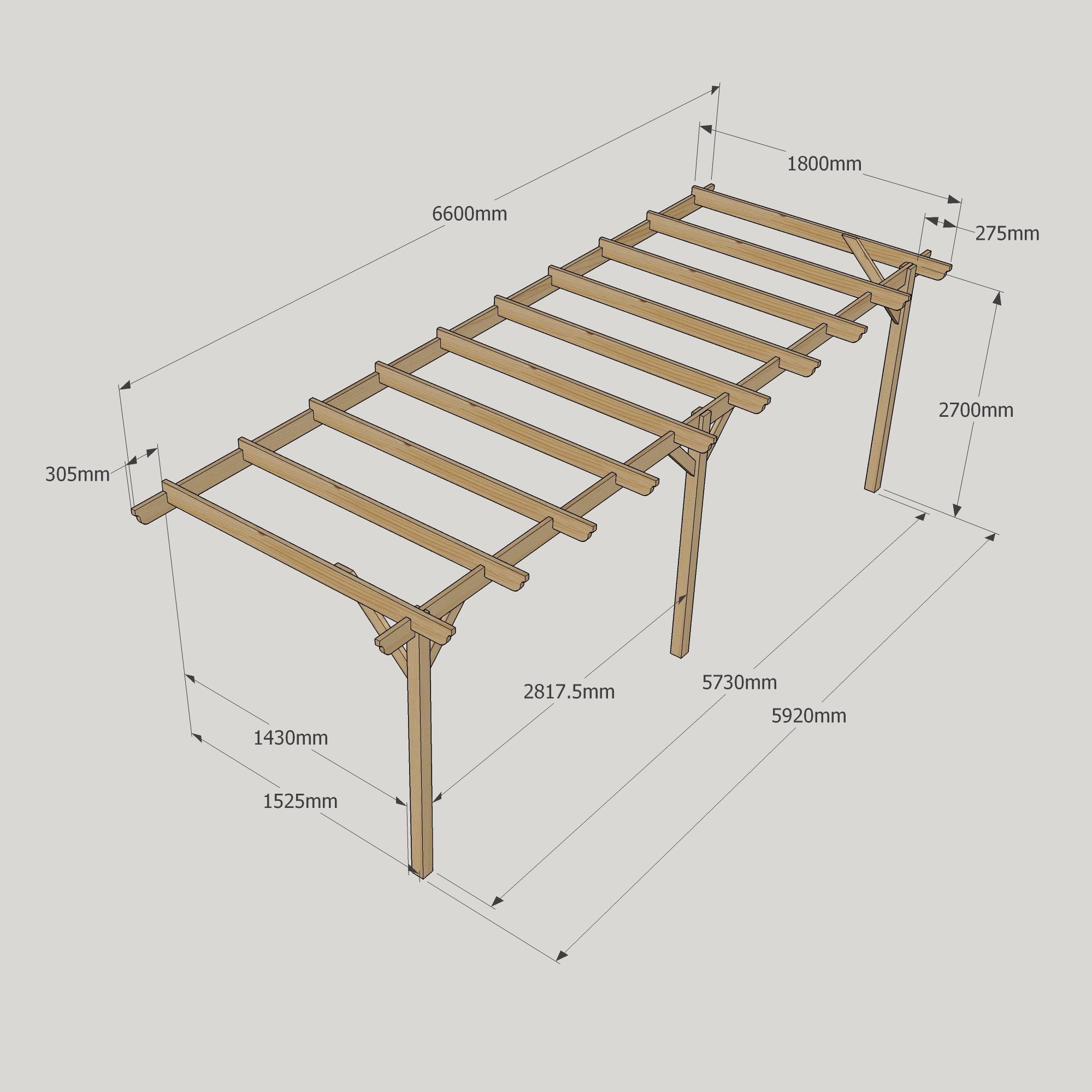

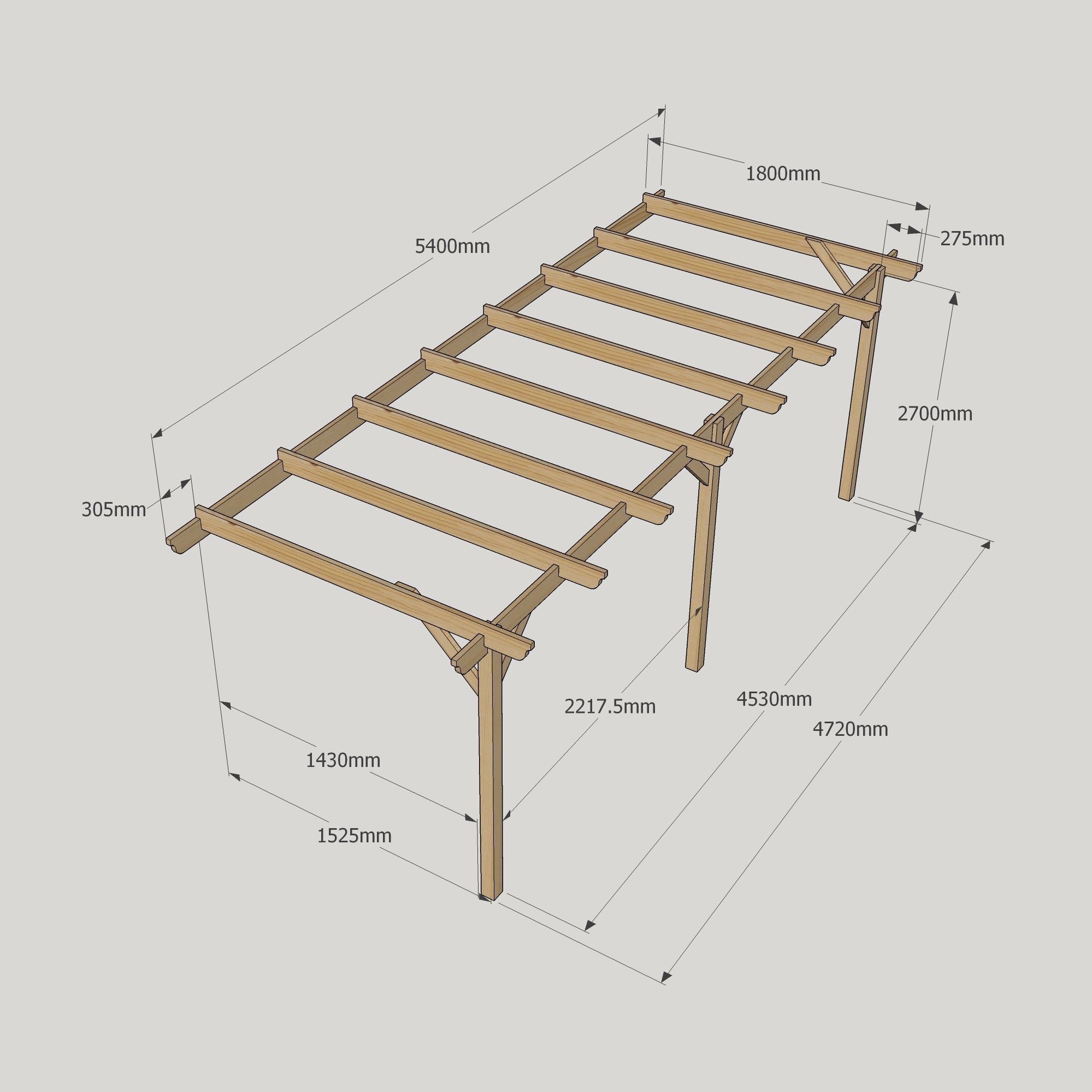

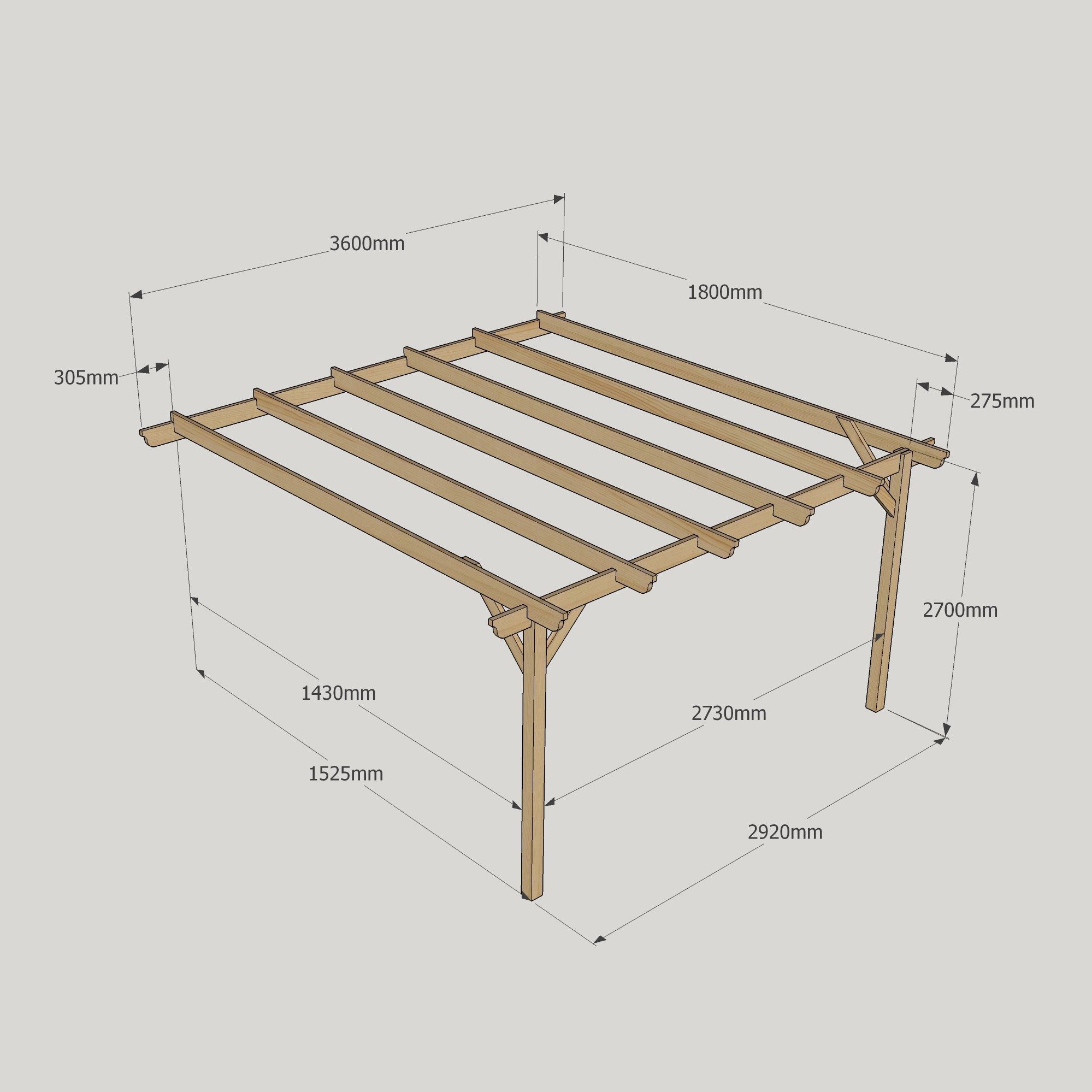

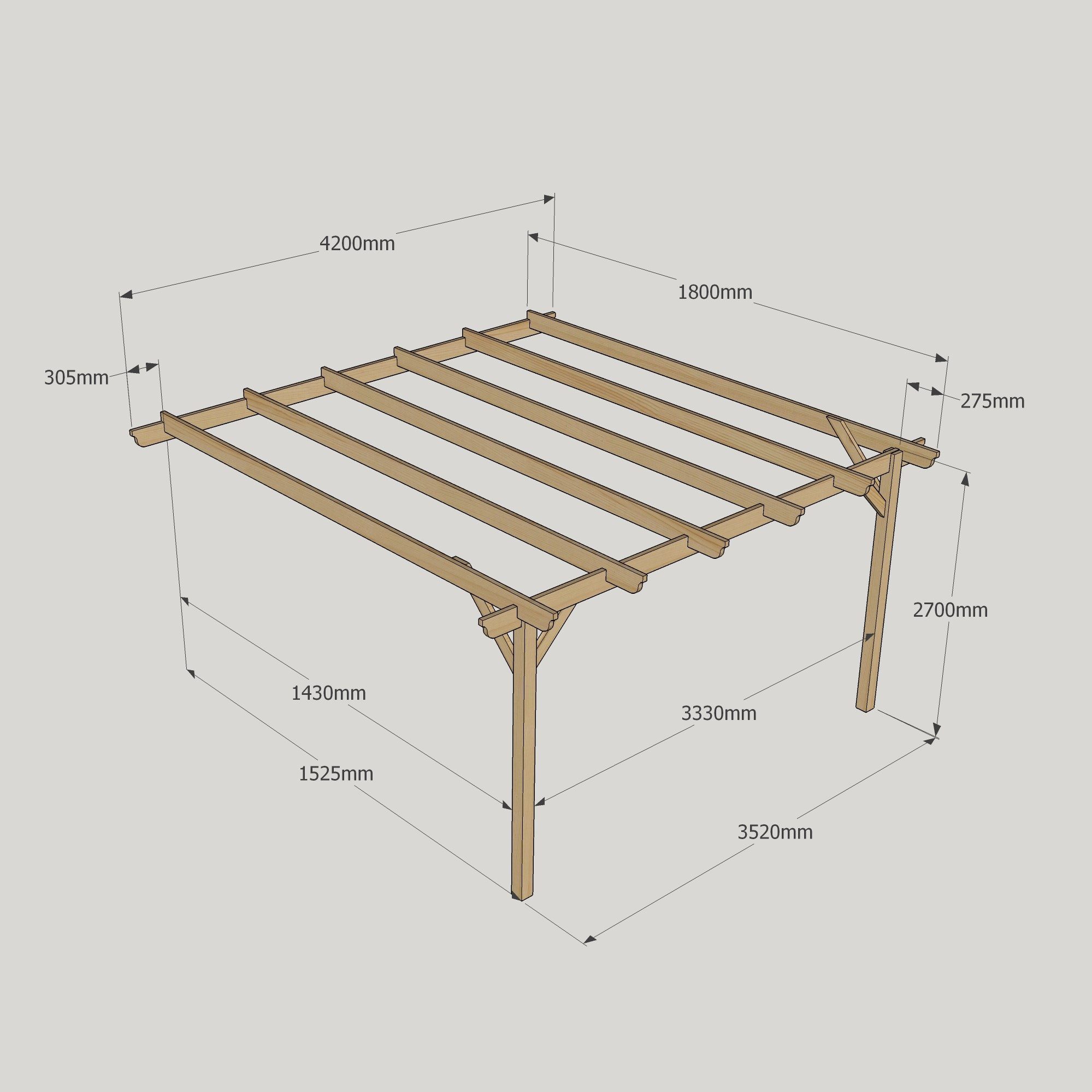

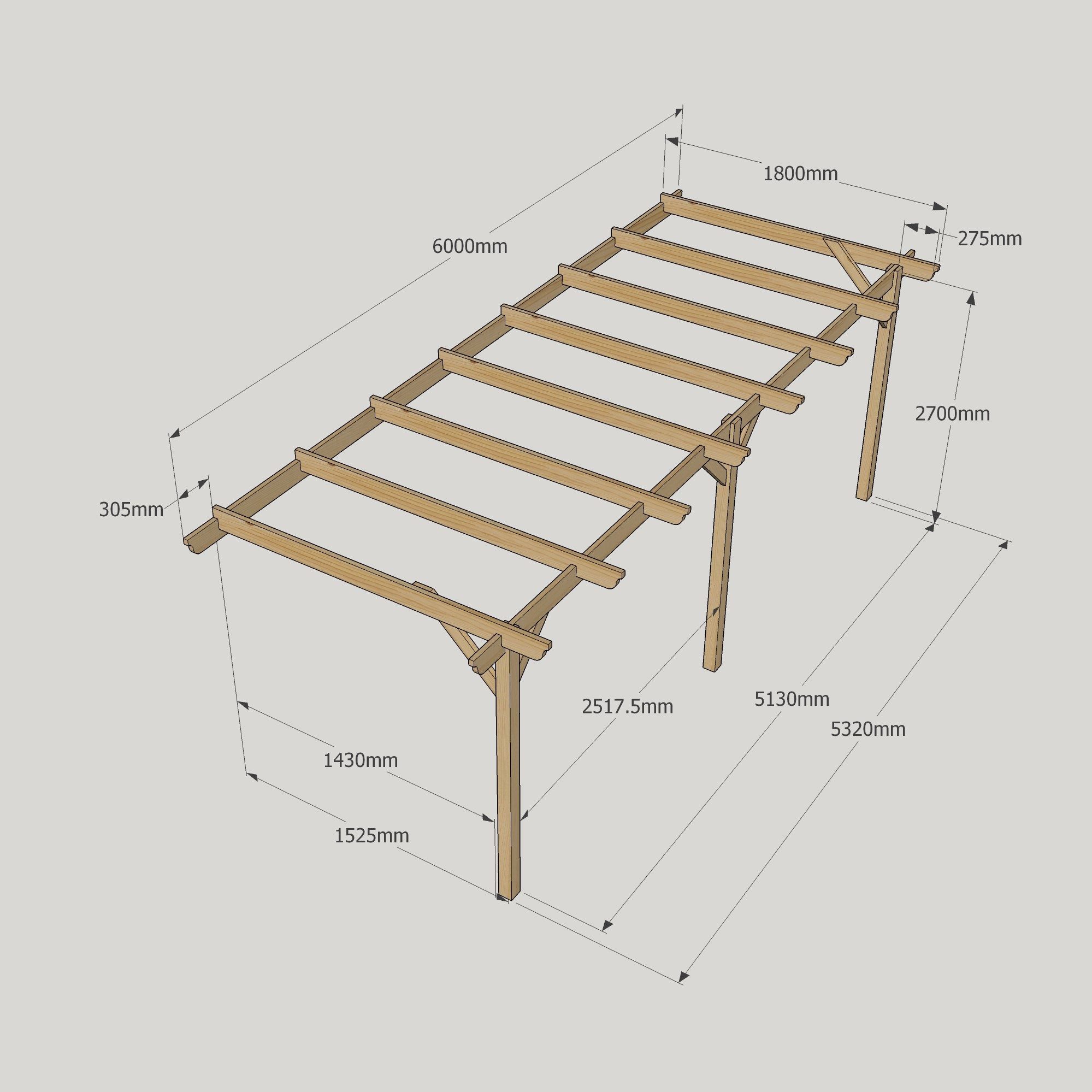

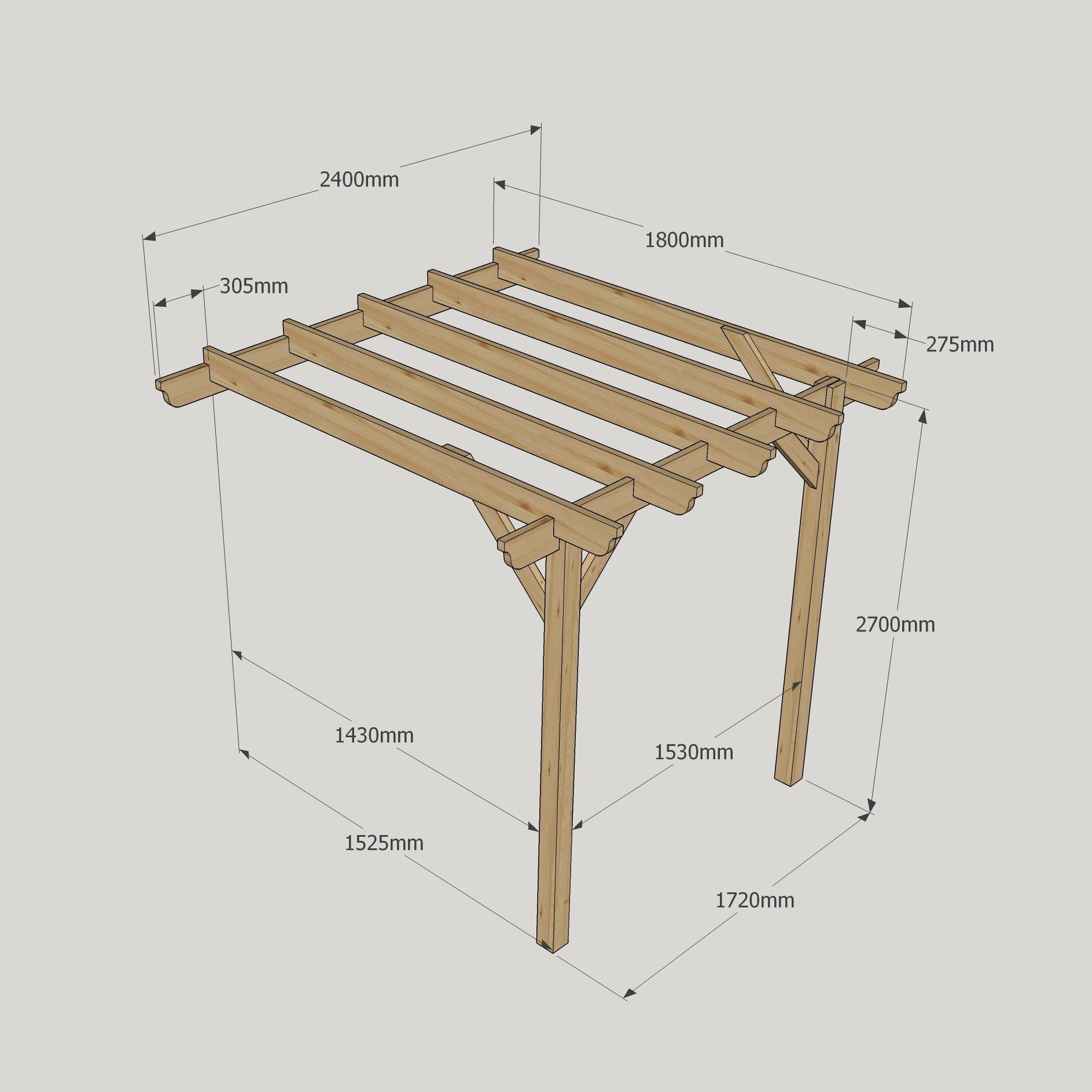

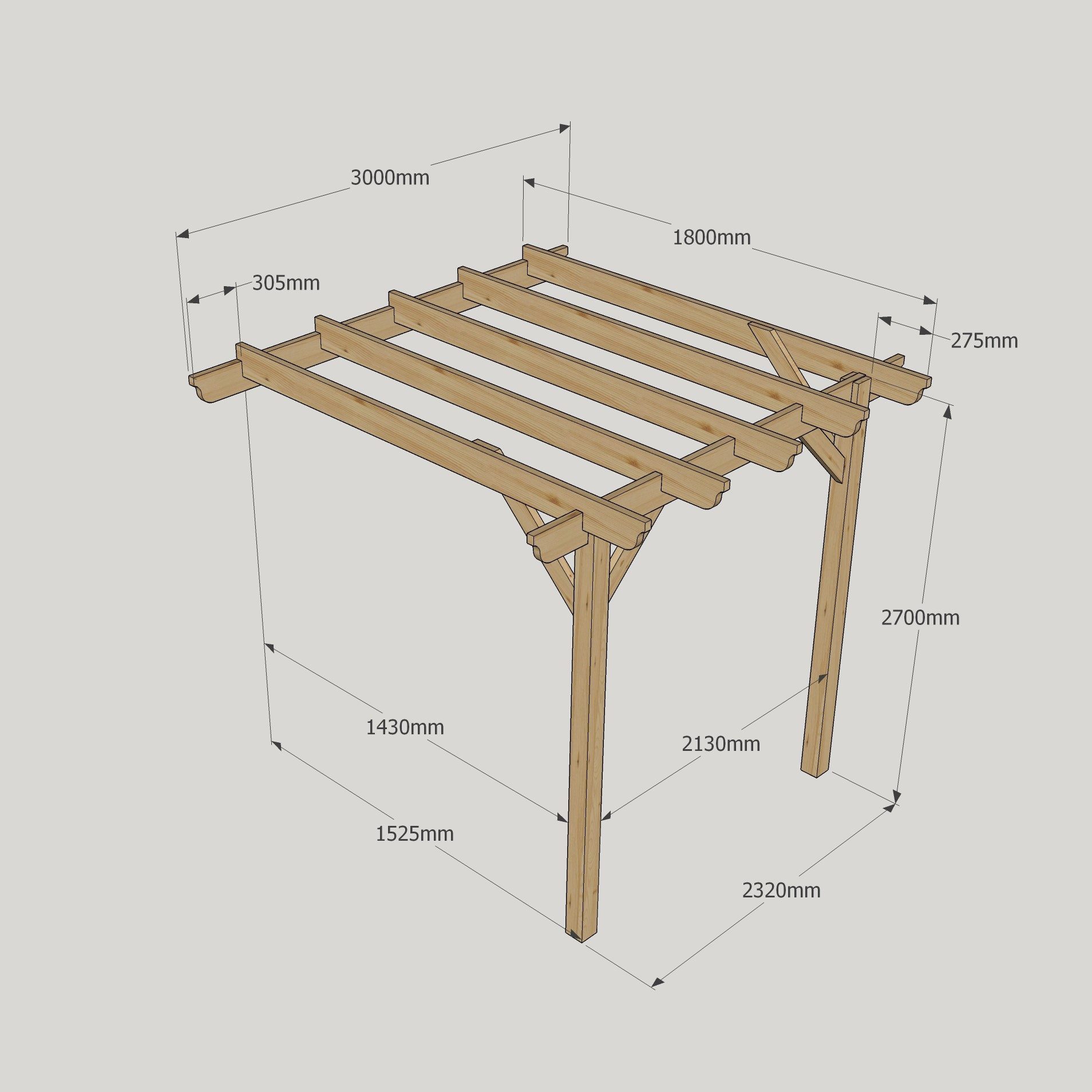

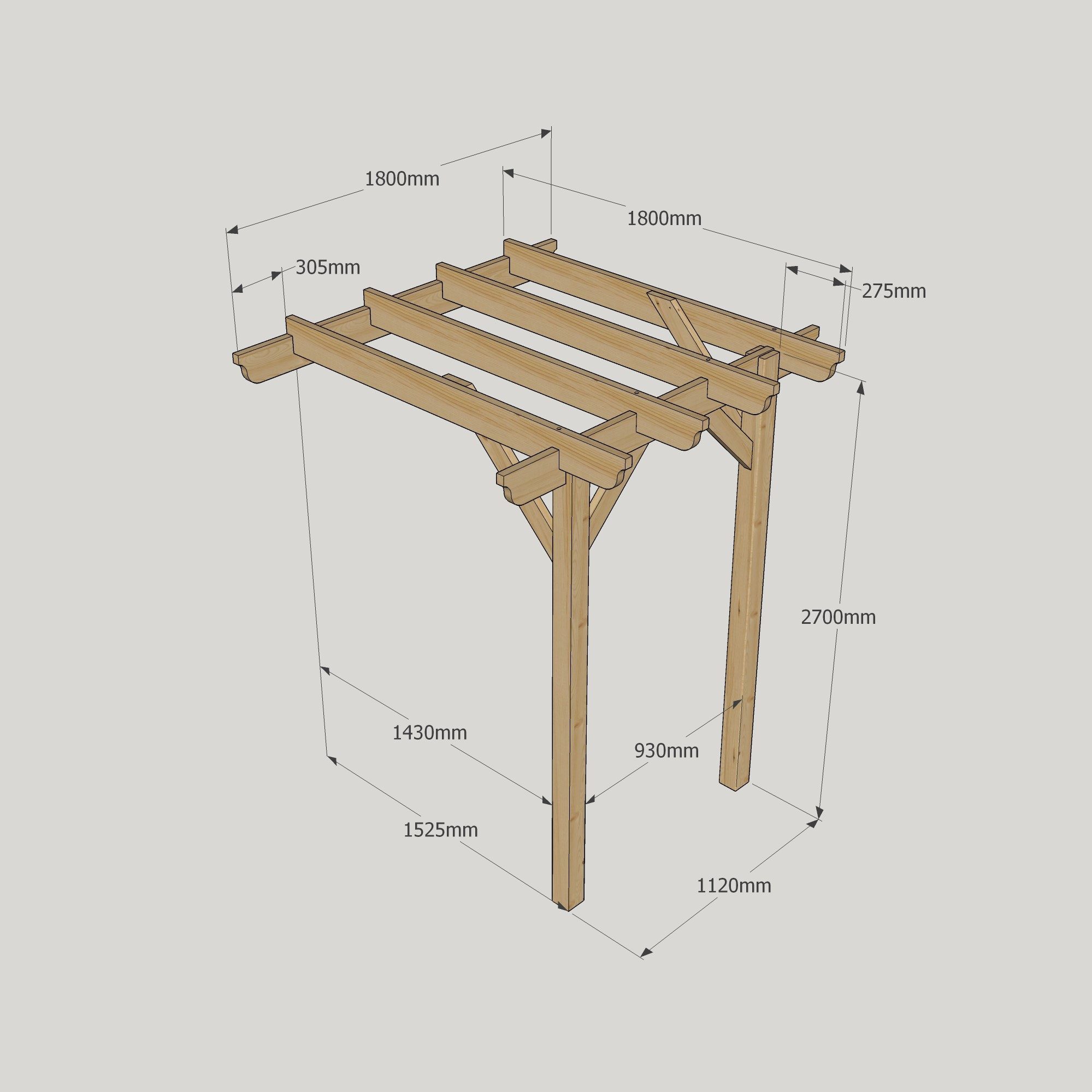

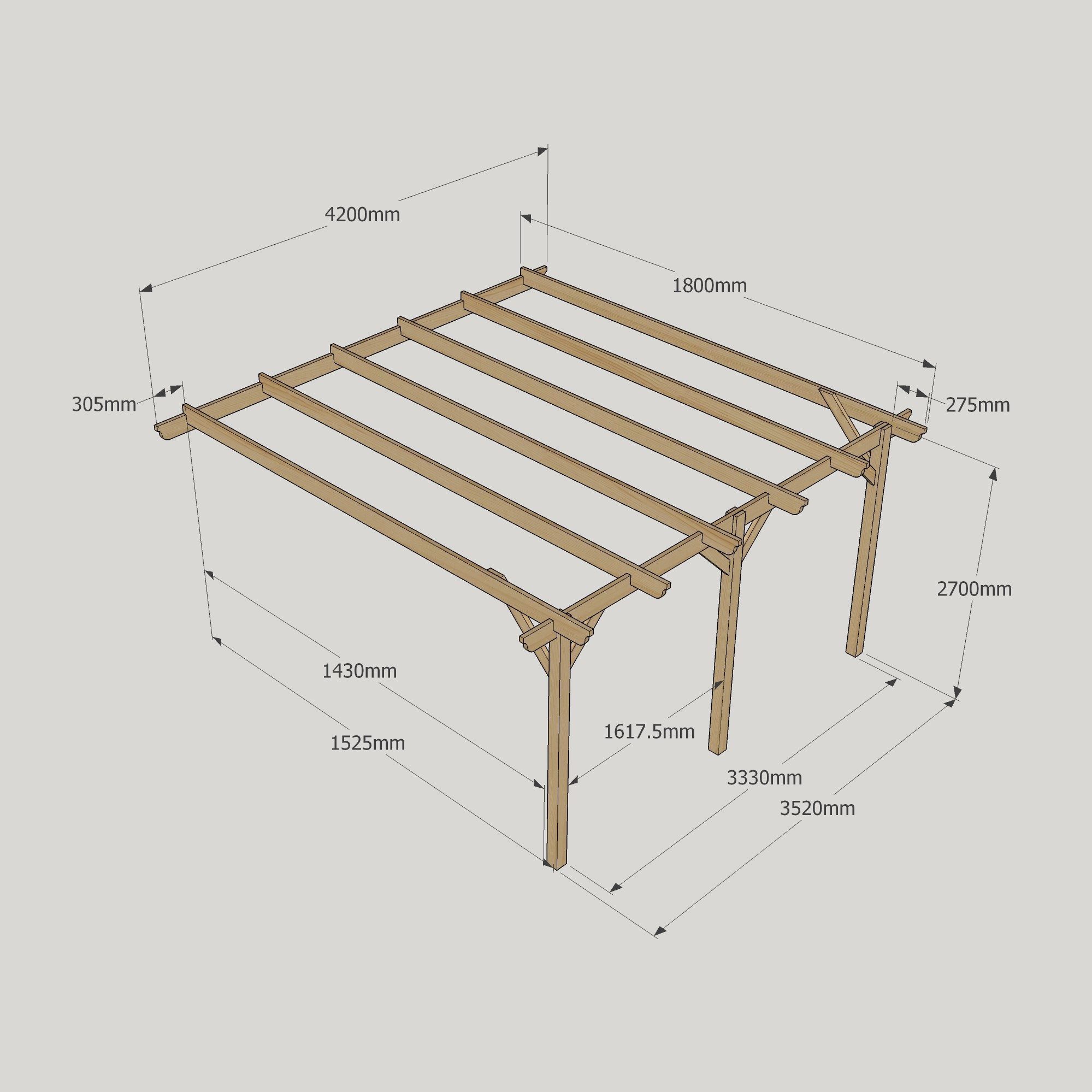

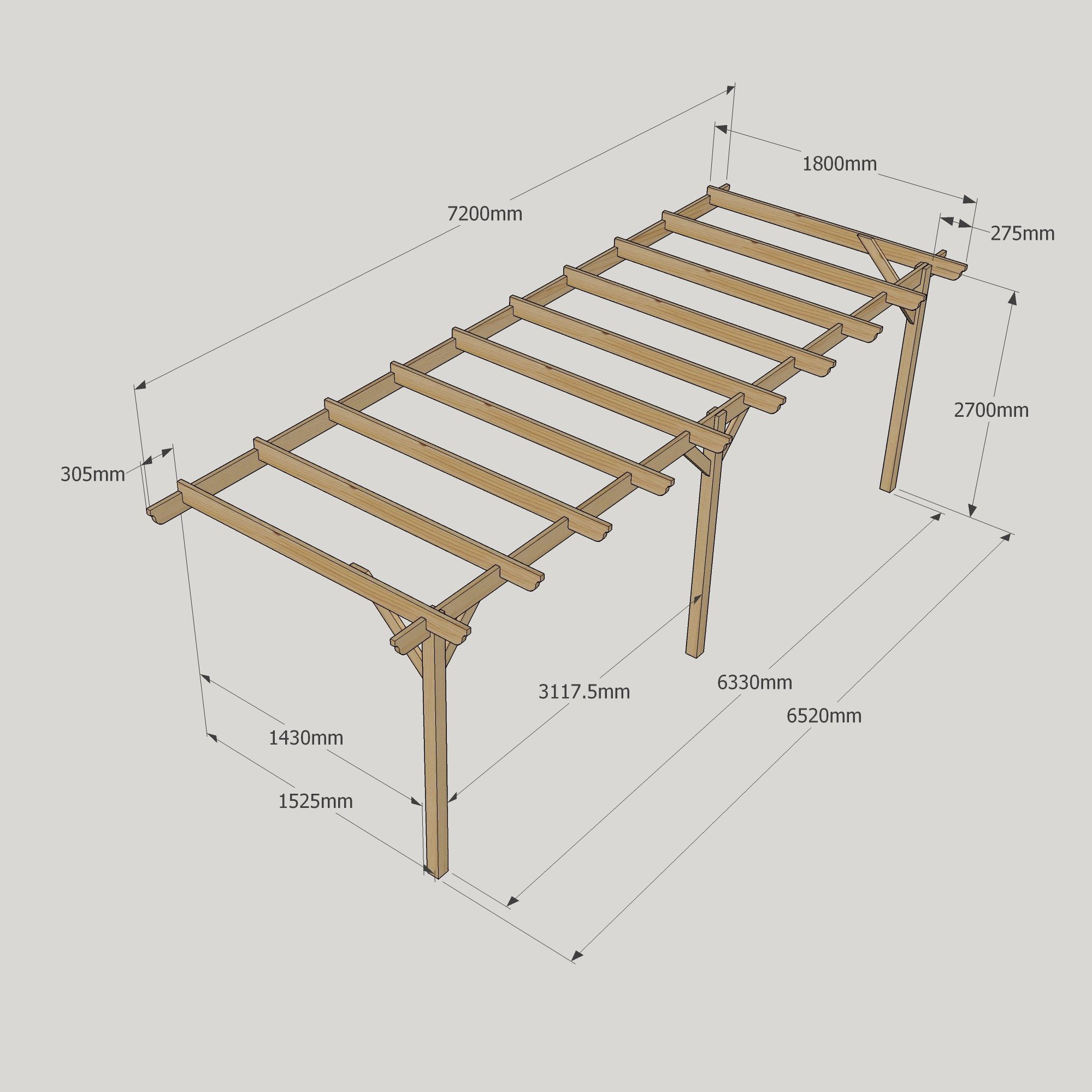

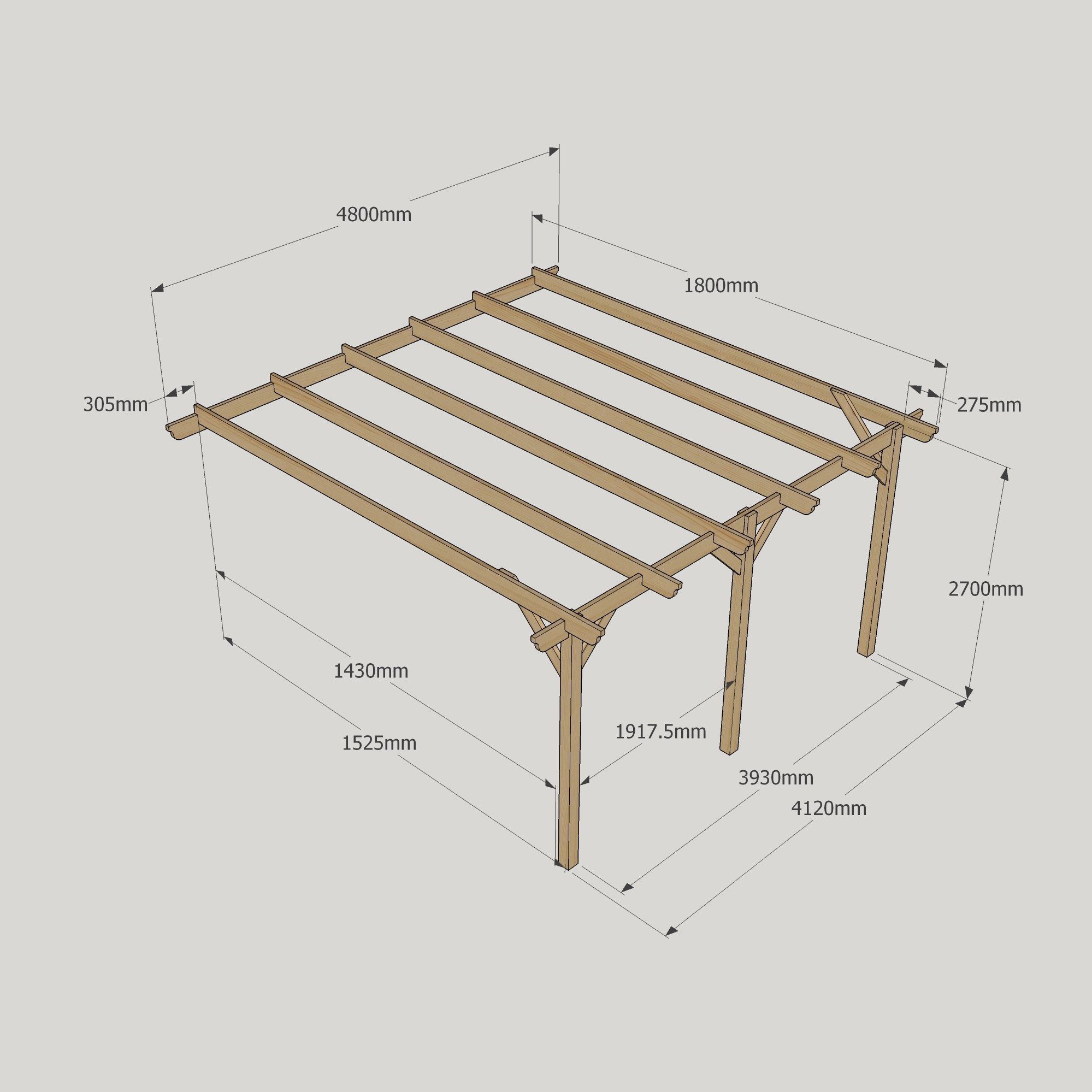

Please ensure you have checked the dimensional drawing for your chosen size and the component parts drawing before completing your purchase as the sizes listed are those of the rafters and runners, not the post dimensions.

The post positions can be found on the dimensional drawings.

If you require a roof to fit your pergola, please contact us regarding our polycarbonate roof kits.

Rafter Quantity / Rafter Gap Measurement

Please note: The product colours shown are representative only and may differ on the actual product due to natural variations in the timber used.

Unable to find the the size you need? Please ask us about our custom sized pergolas.
