Double Garden Pergola – 4.8m Wide
From £779.16 Exc. VAT
Double Garden Pergola – 4.8m Wide
Transform your garden or patio into a stylish living area with a pergola from the UK’s leading pergola manufacturers.

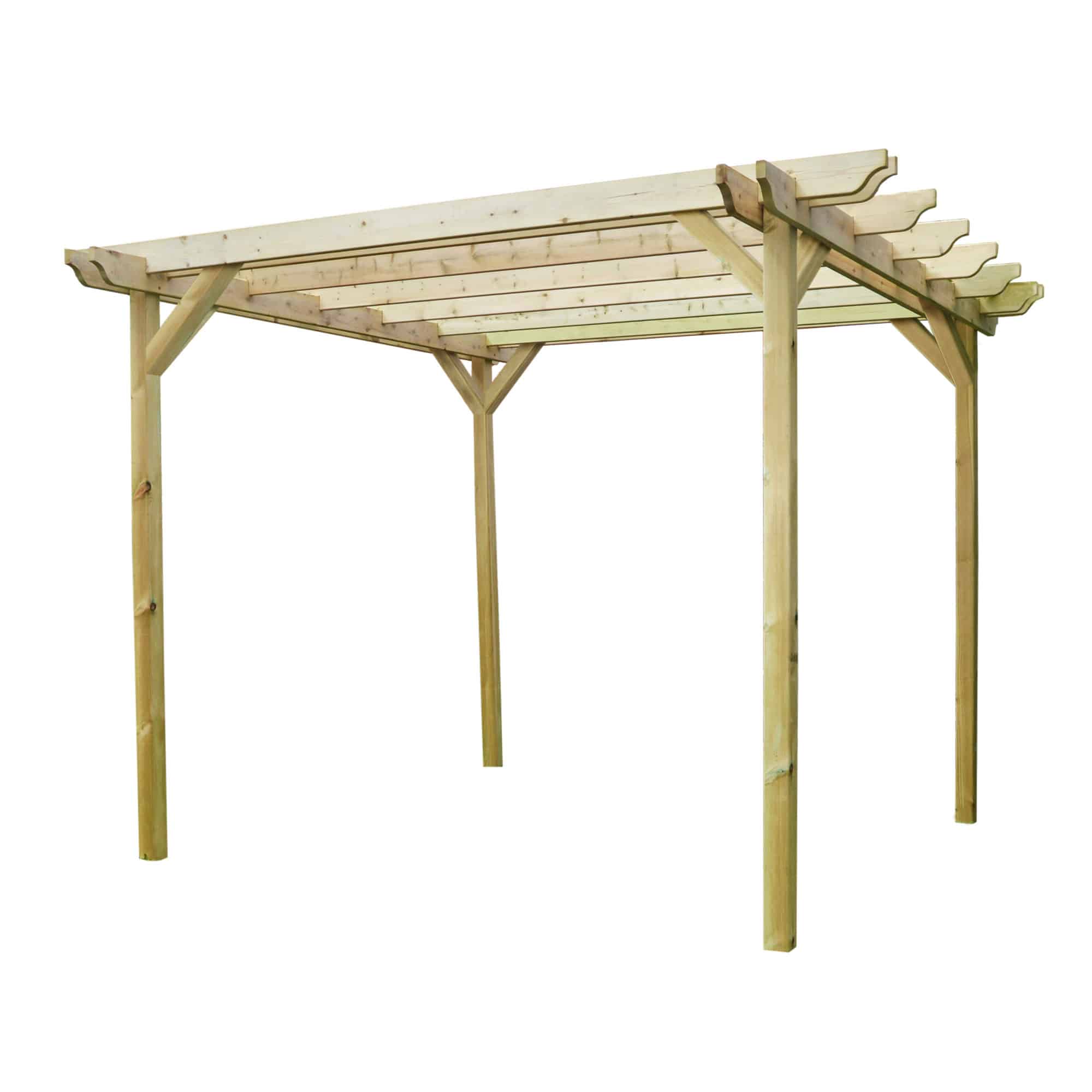

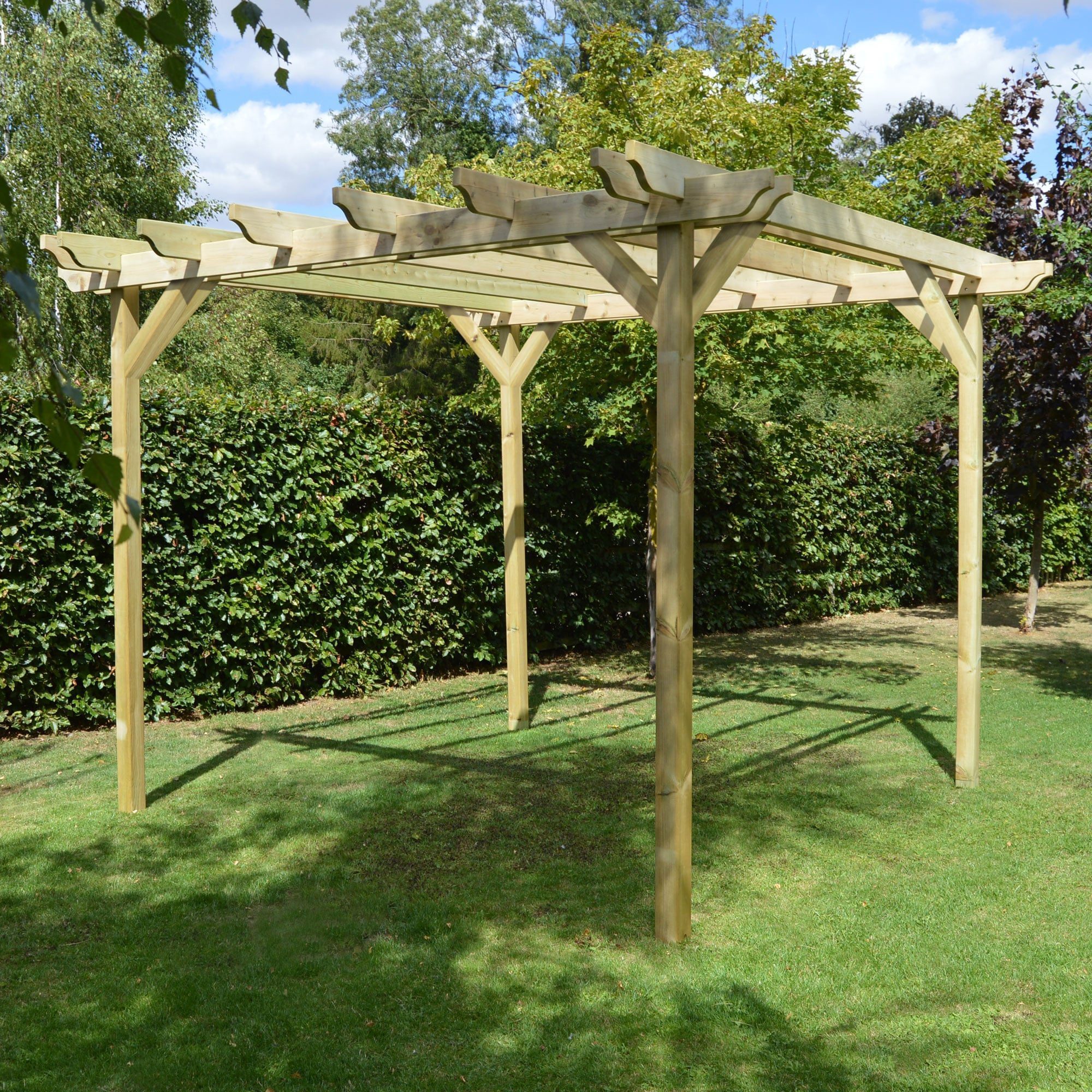

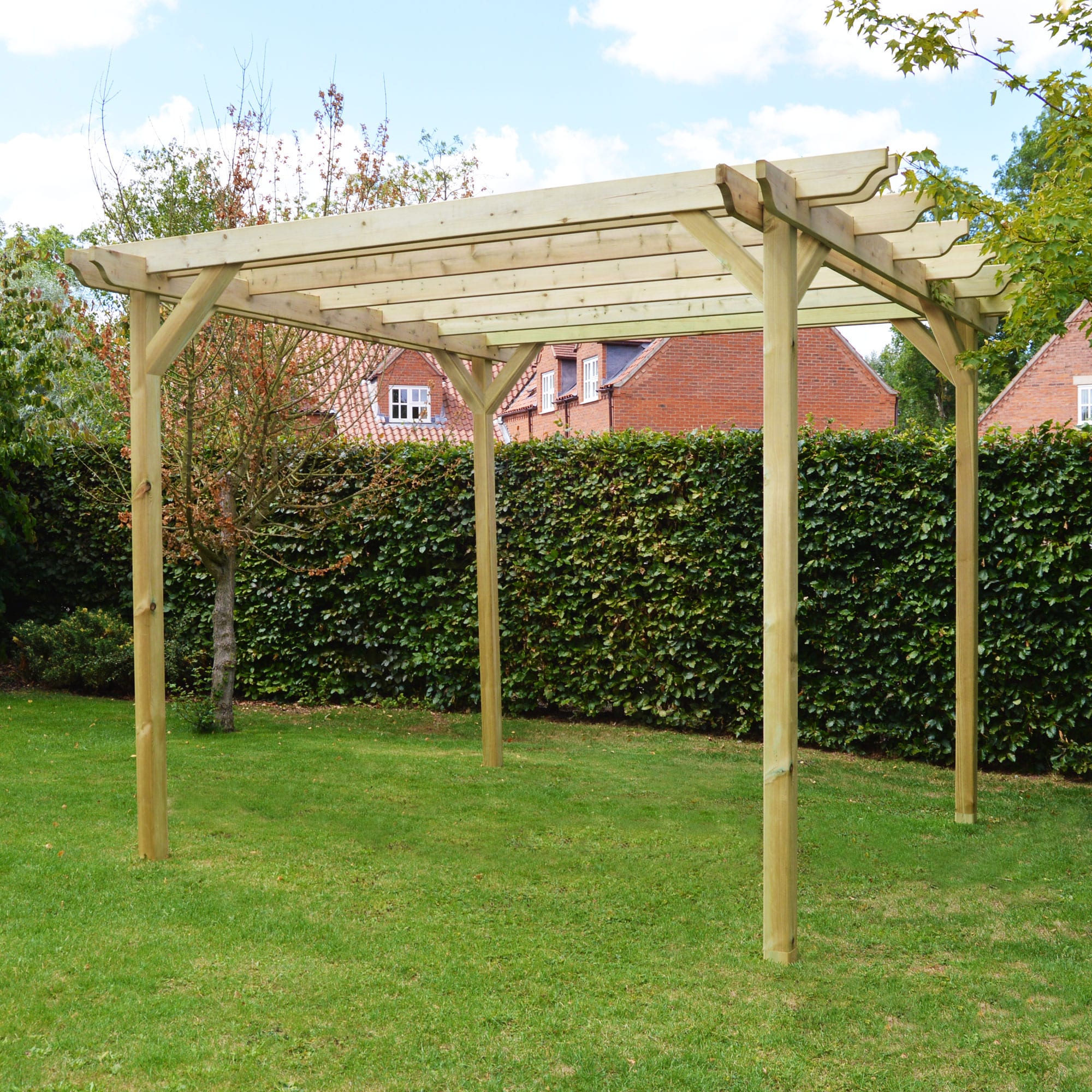

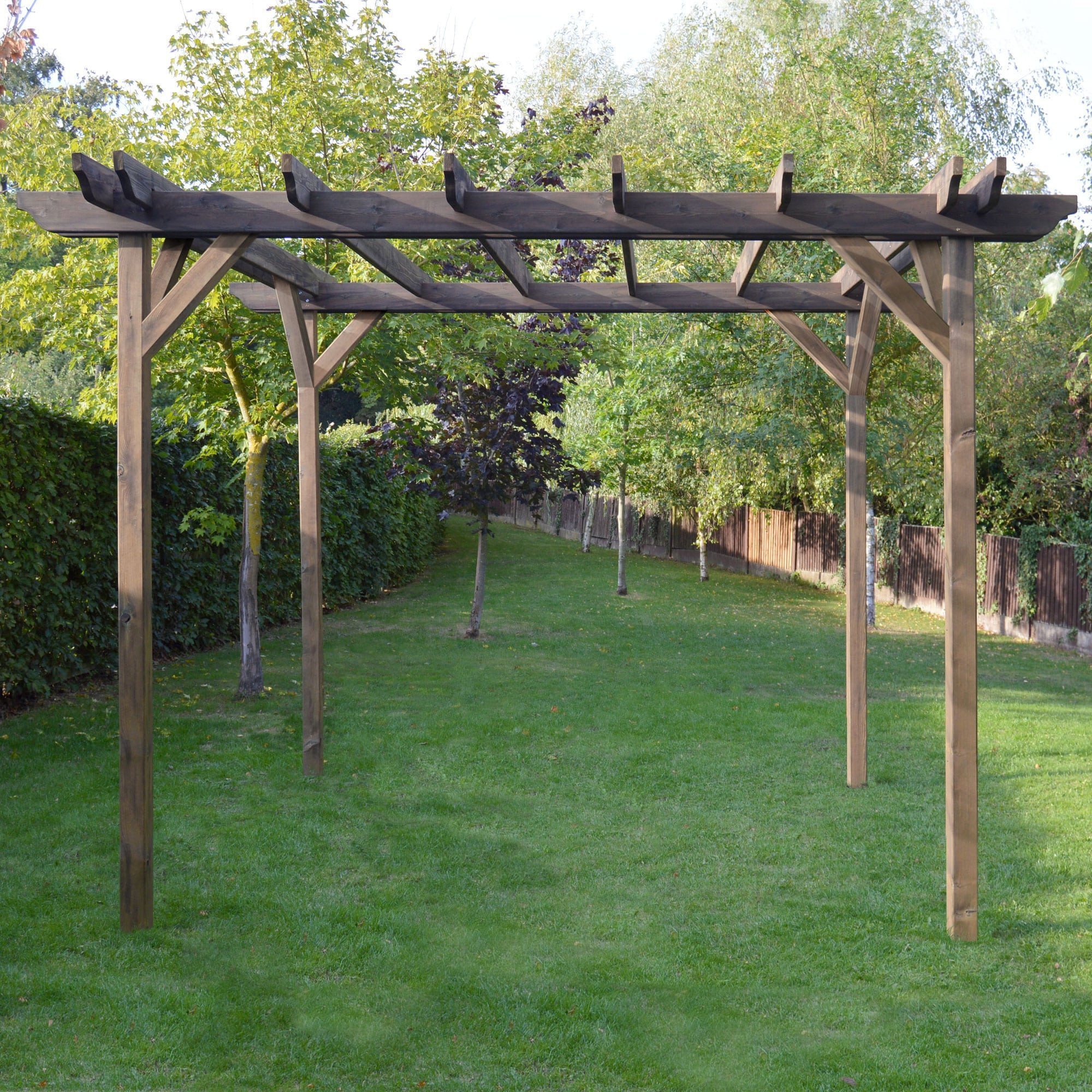

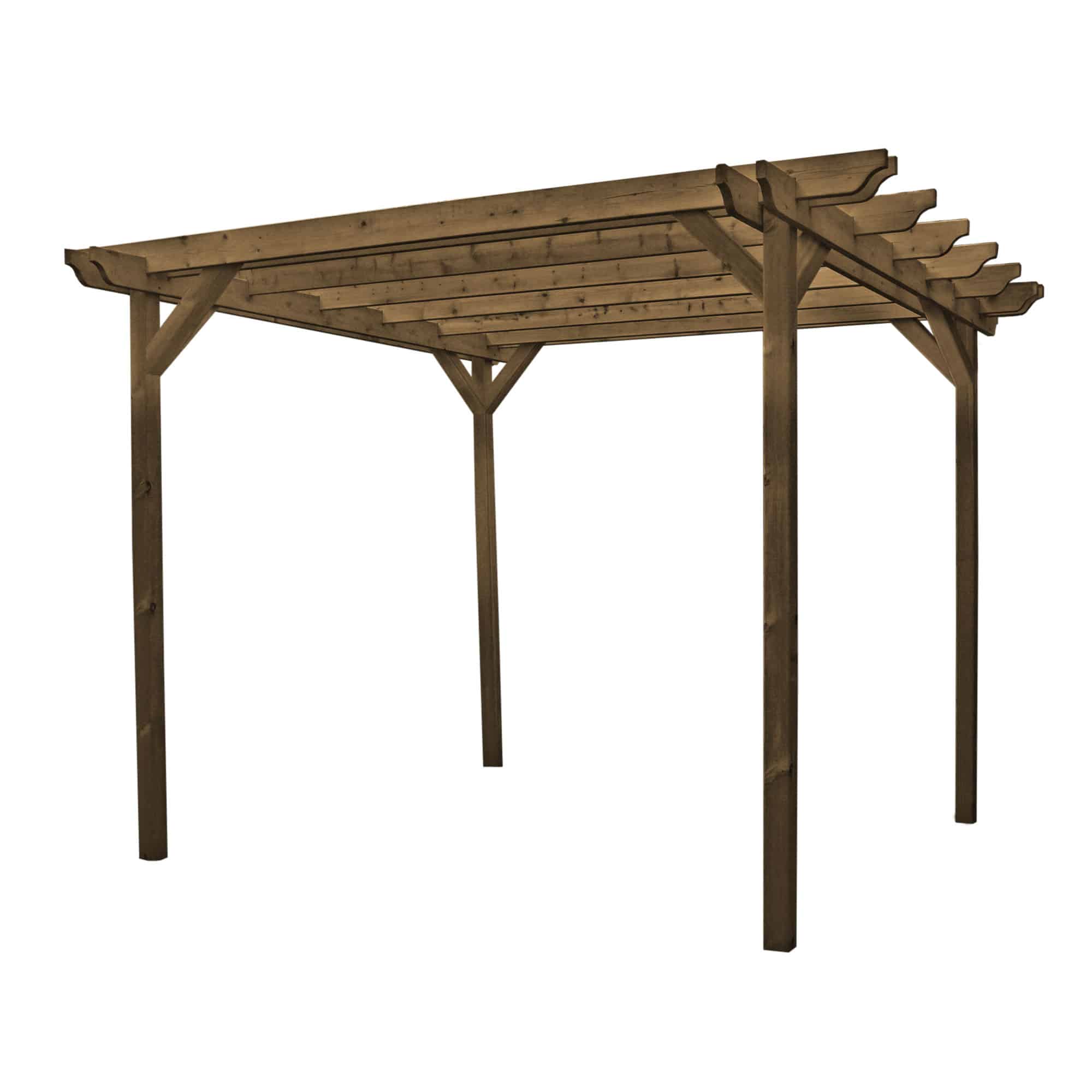

The Double Garden Pergola features a distinctive double rail configuration and is an enhanced variation on the classic pergola design that adds further timbers which give a more substantial look and feel.
Available in a range of widths – 1.8m, 2.4m, 3m, 3.6m, 4.2m and 4.8m (and custom sizes upon request) – This listing is for 4.8m wide pergola’s. For all other sizes please see our other listings.
Along with all bolt down and spiked feet purchases we supply a flat drill bit. After you have cut your posts to the desired length, please use the drill bit to drill a hole into the centre of the bottom of the post – this is to locate your post onto the bolt down or spiked foot.
All pergolas purchased with bolt down or spiked feet will be cut to 2.4m, unless requested otherwise.
Features:
- Easy assembly with the minimum of tools required.
- High quality pressure treated Northern European Redwood.
- Solid 95mm x 95mm corner posts.
- 34mm x 140mm Runners and Rafters.
- Corrosion treated, heavy duty fixings.
- Curved decorative braces.
- Distinctive double rail configuration.
- Custom sizes available.
Dimensions:
- Height: 2700mm
- Width: 4800mm (Overall length of Rafters)
- Depth: 4800mm, 5400mm, 6000mm, 6600mm, 7200mm or 7800mm (Overall length of Runners)

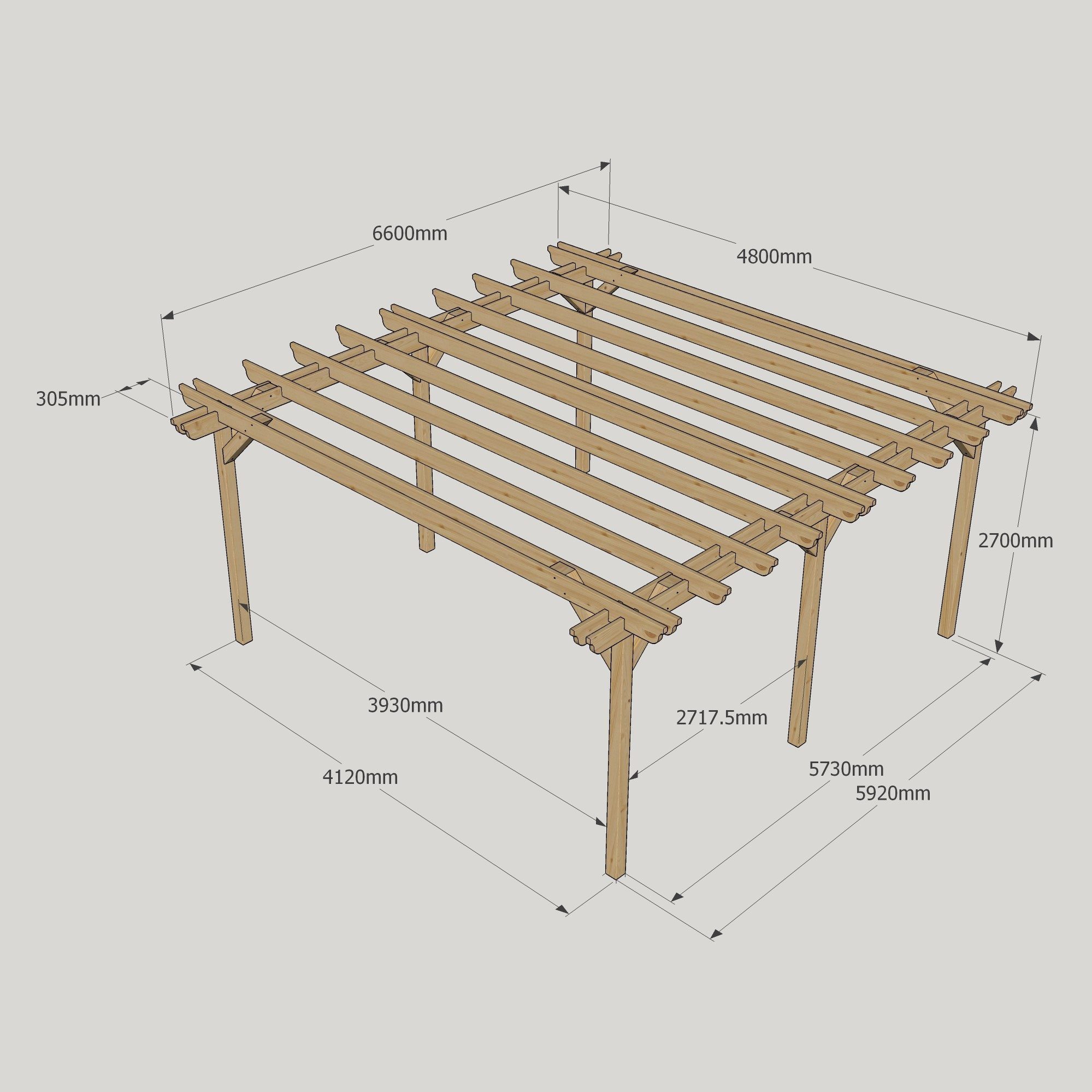

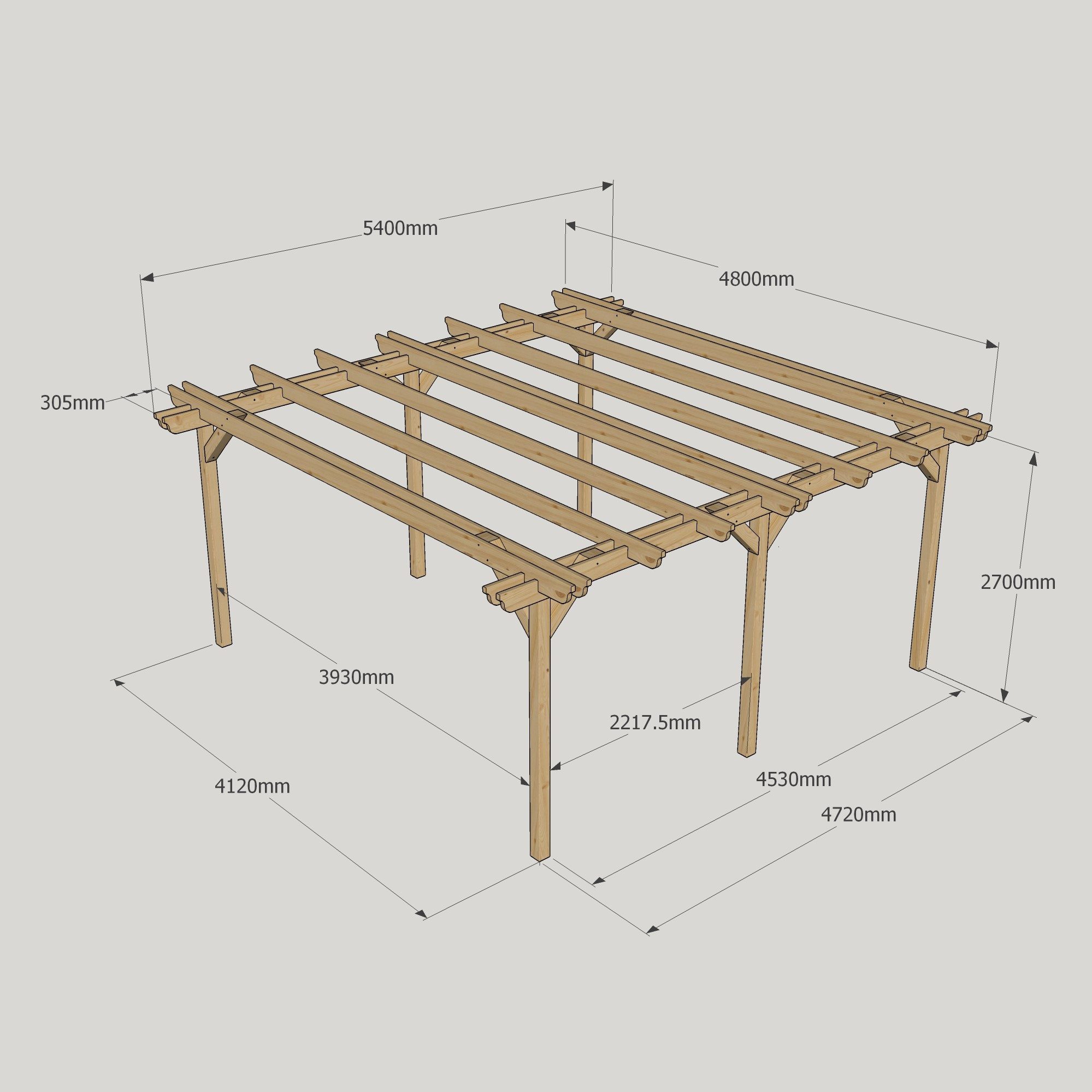

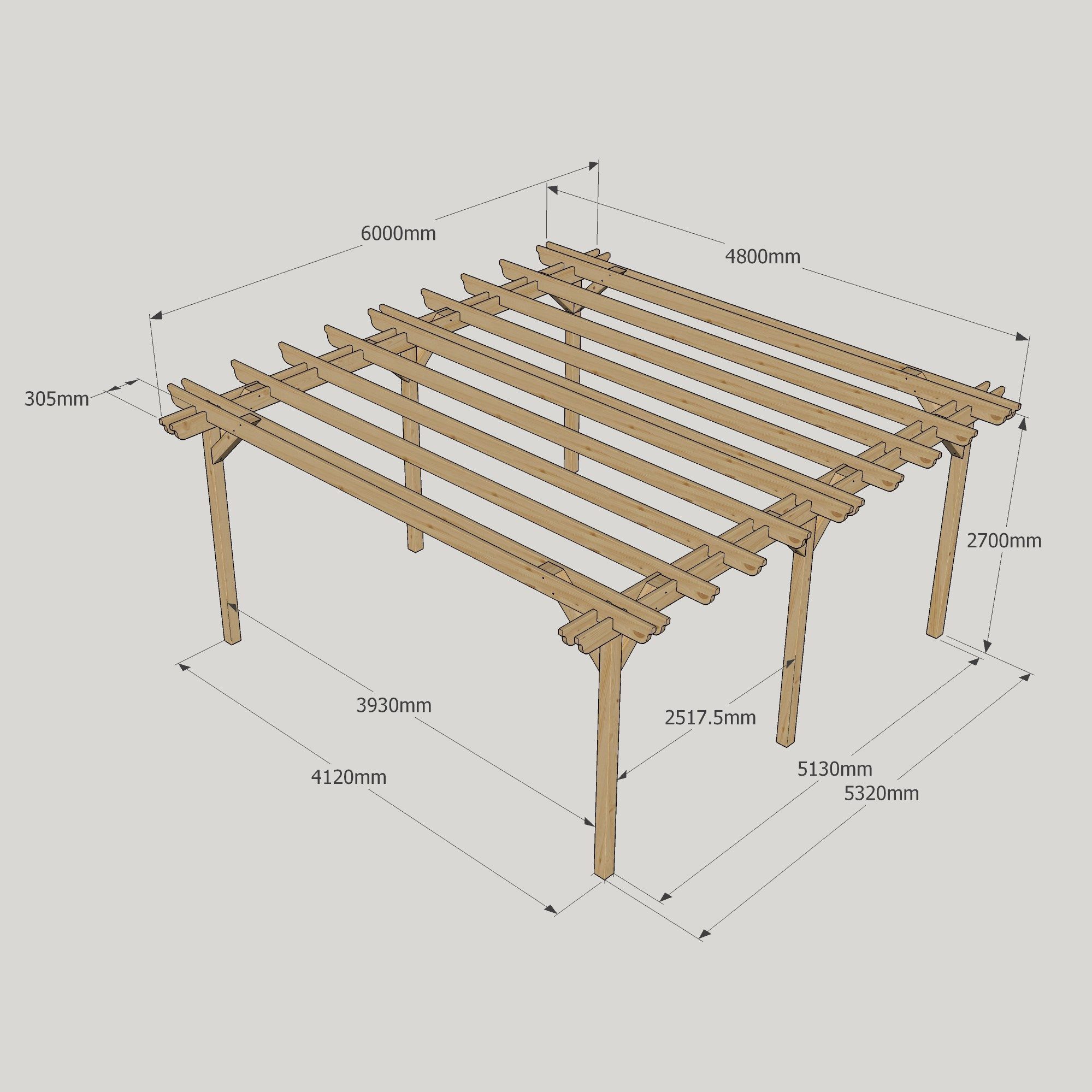

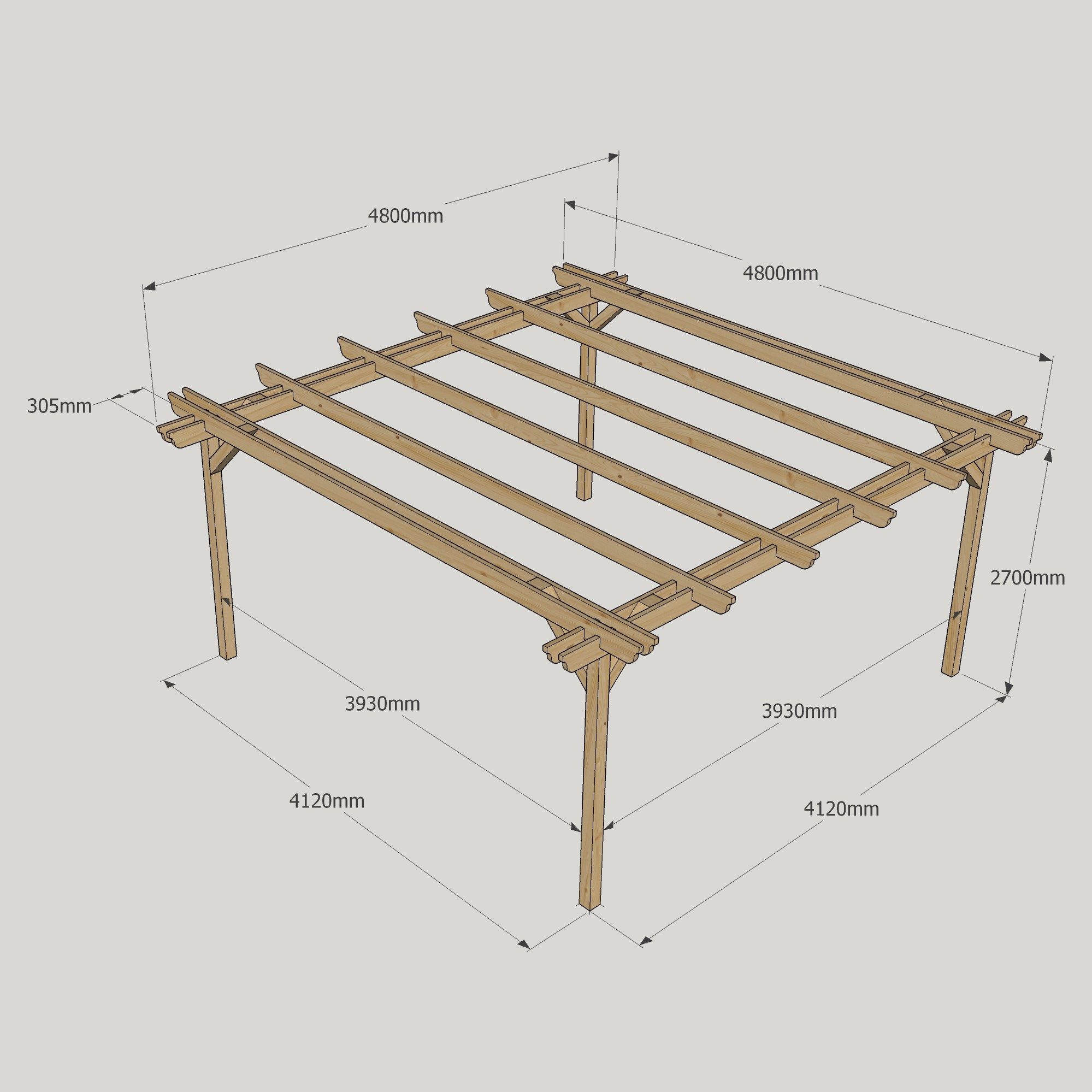

Please ensure you have checked the dimensional drawing for your chosen size and the component parts drawing before completing your purchase as the sizes listed are those of the rafters and runners, not the post dimensions.

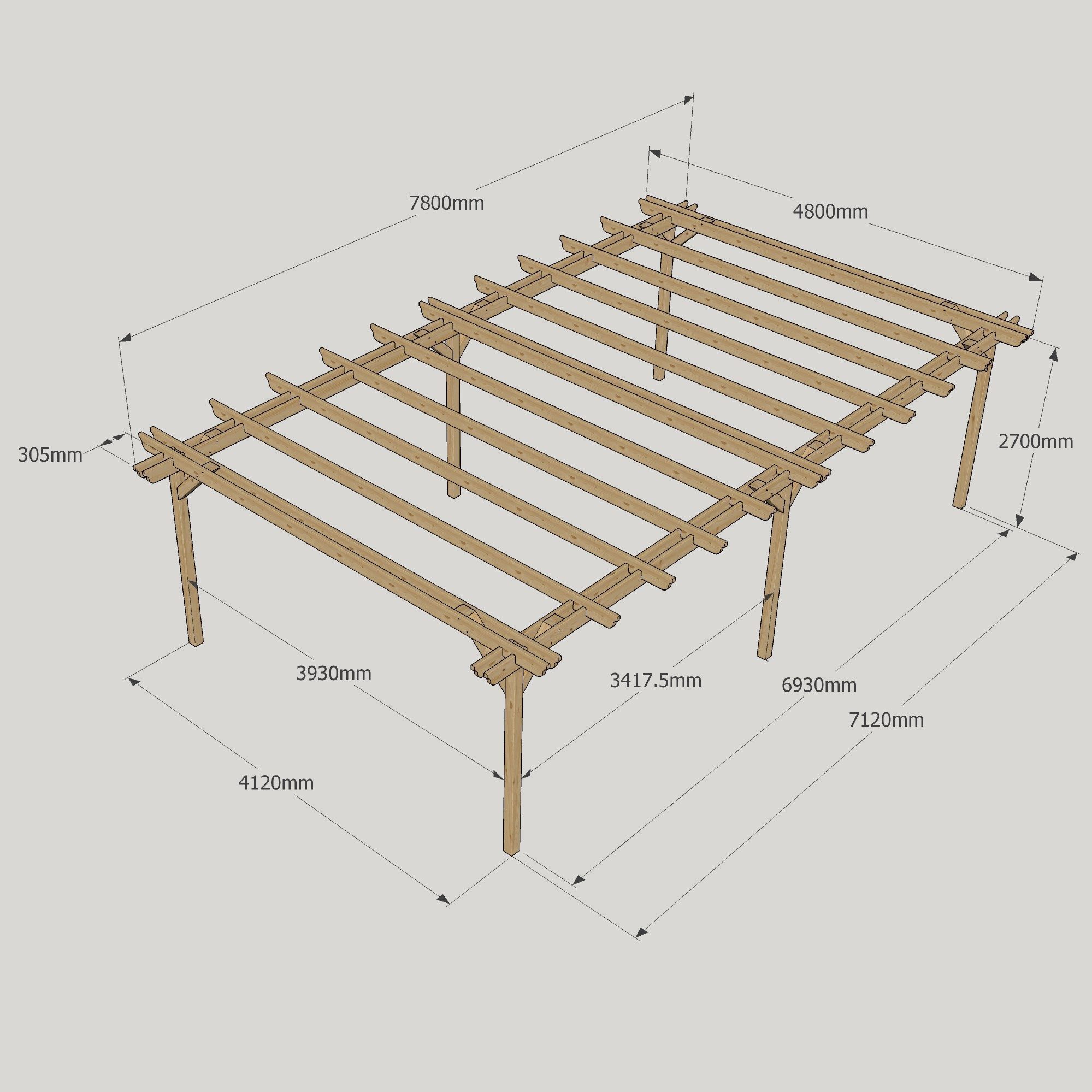

The post positions can be found on the dimensional drawings.
If you require a roof to fit your pergola, please contact us regarding our polycarbonate roof kits.
Rafter Quantity / Rafter Gap Measurement
| Runner Length | No. of Rafters | Gap Between Rafters |
| 1800mm | 6 | 264mm |
| 2400mm | 7 | 340mm |
| 3000mm | 7 | 490mm |
| 3600mm | 8 | 505mm |
| 4200mm – 4 Post | 8 | 625mm |
| 4800mm – 4 Post | 8 | 745mm |
| 4200mm – 6 Post | 10 | 493mm |
| 4800mm – 6 Post | 10 | 593mm |
| 5400mm | 10 | 693mm |
| 6000mm | 12 | 587mm |
| 6600mm | 12 | 661mm |
| 7200mm | 12 | 736mm |
| 7800mm | 14 | 642mm |

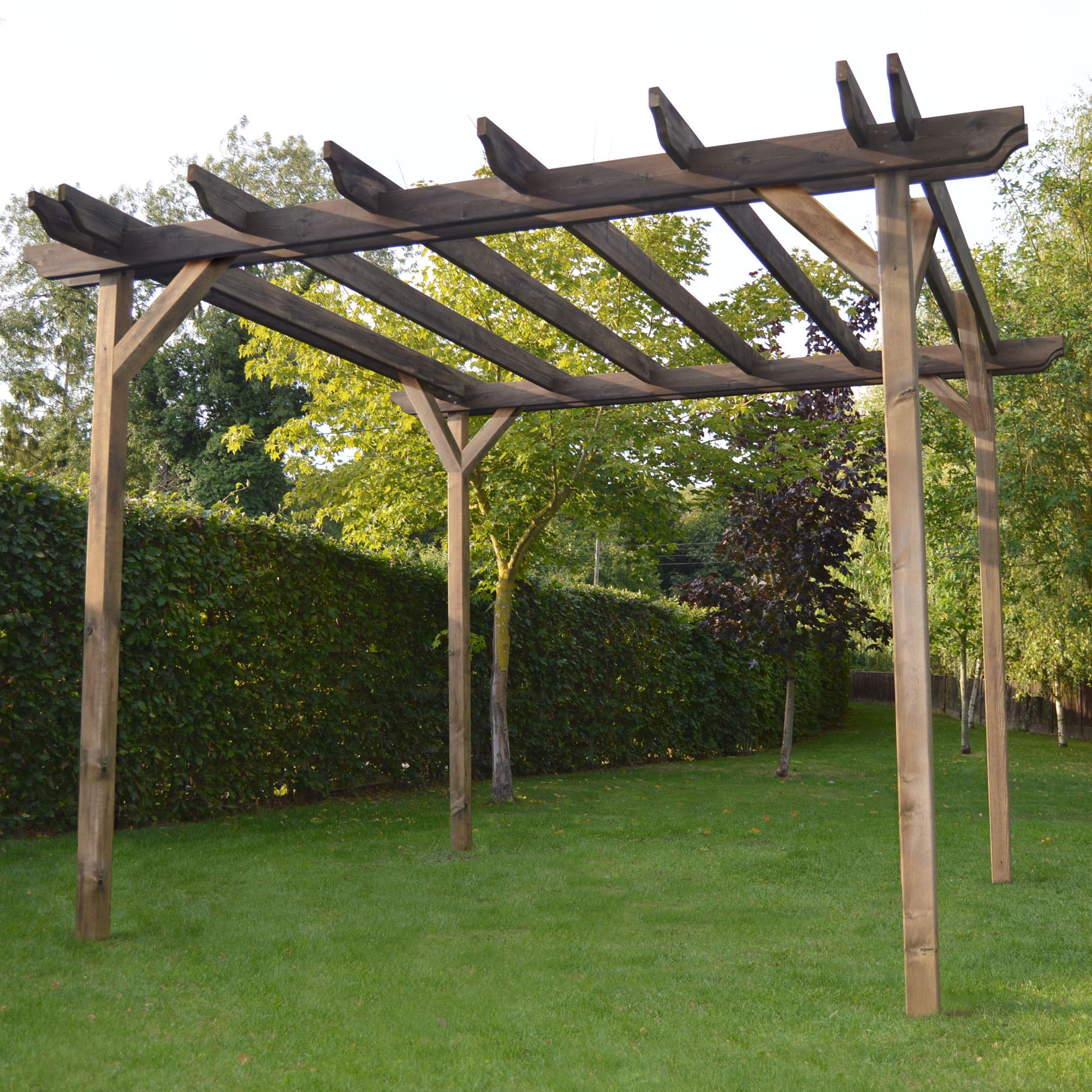

Please note: The product colours shown are representative only and may differ on the actual product due to natural variations in the timber used.
Unable to find the the size you need? Please ask us about our custom sized pergolas.
Additional information
| Dimensions | 4800 × 2700 mm |
|---|
