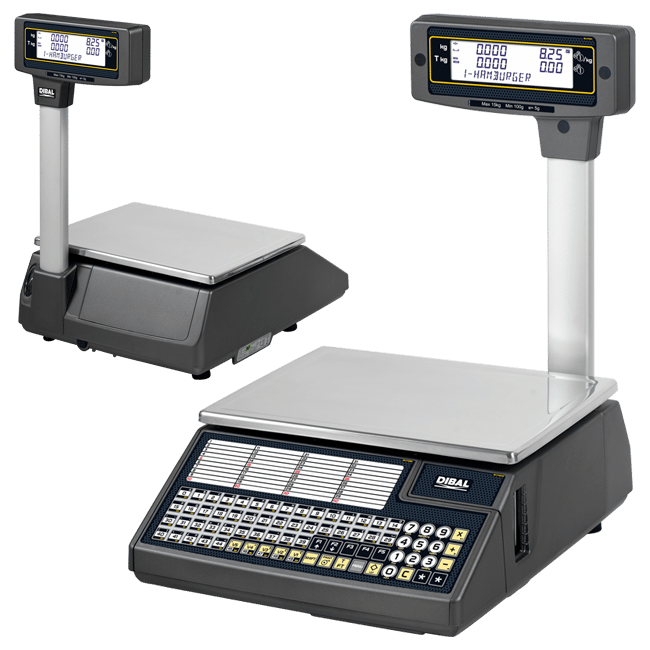

Dibal WIND Series W-015T Electronic Counter Scales – 15kg

MAIN CHARACTERISTICS

• Electronic scale with higher visibility display options.
• Models with receipt printer or label printer (suitable for receipts).
• Functional and robust design.
• Compliance with EU Regulation 1169/2011 on the provision of food information to consumers (only for W-025).

FEATURES

• Extensive information for each PLU: normal price, price for weight, 2 names of 20 characters (1 in W-010, W-010 B and W-015), 10 free texts of 24 characters (5 in W-010, W-010 B and W-015), profitability codes, etc.
• PLU search by code or name.
• Preset keys to programming menus: to change prices, register PLUs or vendors, etc.
• Direct access to 999 PLUs from the keyboard.
• Drill down menu.
• Printing of scale menus.
• Fast and reliable communication between scales, with PC and mobile devices (via DWS).
• Stocks management on the scale.
• Option to record normal price for each article.
• Stock / order mode.

CAPACITY / ACCURACY

FORMATS

• Flat.
• Pole.

CONSTRUCTION

• Highly resistant ABS plastic casing.
• Stainless steel plate.

DISPLAYS

• Backlit LCD segment display (W150.2 X H43.4 mm) for vendor and buyer (showing weight, price / kg, total, tare, vendor and name of articles).
• Optional:
  LCD matrix graphic display (W134 x H41 mm) for vendor. Possibility of showing: logos, profitability codes, warning messages sent from a PC (on vendor display) and advertising messages with animated effects on buyer display.

PRINTER

• Models available with 1 printer for receipts or 1 printer for labels (also suitable for receipts by changing the paper roll and the working mode).
• 54 mm thermal printer.
• High resolution (8 dots/mm).
• Speed depending on models:
  W-010 and W-015: 80 mm/sec.
  W-010 B and W-020 B: 60 mm/sec.

RECEIPTS

• All the models:
  15 fonts (6 monospaced + 9 multispaced: more modern and legible).
  Up to 40 items.
  EAN-13 barcode.
  9 payment methods.
  Total in National currency and other 3 different currencies.
  Discounts per line and total.

LABELS

• All the models:
  15 fonts (6 monospaced + 9 multispaced: more modern and legible).
  40 logos.
  EAN-13 barcode.
• 40 fields of information.
  100 programmable texts.
  Manual and automatic pre-packaging modes.
  Automatic adjustment of the paper detection option.

• W-015 models:

From W30 x L30 mm to W60 x L80 mm.
20 fixed formats + 5 programmable formats.
1 type of generic traceability (for meat, fish, fruits, vegetables, etc.) up to 10 products. Included in the prevailing European legislation on bovine traceability.
W-025 models:

From W30 x L30 mm to W60 x L100 mm.
20 fixed formats + 10 programmable formats.
3 levels of totals.
Printing of “n” identical labels.
Printing with 90º, 180º and 270º rotation.
Packaging date, expiry date and extra date (for any application).
Alphanumeric batch number.
2 types of generic traceability (for meat, fish, fruits, vegetables, etc.) up to 20 products. Included in prevailing European legislation on bovine traceability.



FOOD INFORMATION

COMMUNICATIONS

• TCP/IP Ethernet for interconnection and connection to PC.
• RS-232, for connection to scanner (in W-020, W-020 B and W-025).
• Optional:
  Wi-Fi.

SECURITY

• Access to different protected programming menus via configurable passwords.

INTERCONNECTION

• W-010, W-010 B and W-015 models: up to 5 scales per section.

CONNECTIVITY WITH OTHER DEVICES

• PC.
• Bar code scanner (powered by the scale – 5 VDC) to read EAN-13 bard codes (in M-520, M-520 B and M-525).
• Cash drawer.

SOFTWARE (Contact us for more details)

PC software:

• DFS:
  • Programming of scales.
  • Receipt of sales data.
  • Data backup copy.
  • Graphic design of receipts and labels.
  • Design and management of advertising images for graphic display.
• DLD:
  • Graphic design of receipts and labels.
• Integration tools: in Windows or Linux to facilitate communication with the Back-Office.

Scale firmware:

• DWS (Dibal Web Server):
  • Allows access to the information on each scale (via passwords) from any computer or mobile device with an Internet browser.

POWER SUPPLY

• Mains: 110 up to 230 VDC.
• Depending on the models, also:
  High performance rechargeable internal battery (W-010 B and W-020 B): up to 36 hours of life (calculated for 1,000 receipts, with 3 articles per receipt) and connector to external battery 12 V.
  Anti-blackout rechargeable internal battery 24 V and connector to external battery 24 V.



Data in mm

A	365
B	440
C	160
D	530
