2.4m Wide Box Pergola

Transform your garden or patio into a stylish living area with a pergola from the UK’s leading pergola manufacturers.

The Rutland Box Pergola range represents a stylish, contemporary alternative to our more traditional pergola designs. The clean, uncluttered lines compliment a more structured garden where simplicity of design is key.

The Box Pergola has been designed to be concreted in situ, so if the pergola will be freestanding, then please enquire about the braces to give the structure the stability it requires.

Also available in multiple widths – 1.8m, 2.4m, 3m, 3.6m, 4.2m and 4.8m (and custom sizes upon request) – For these sizes please see our other listings.

Along with all bolt down and spiked feet purchases we supply a flat drill bit. After you have cut your posts to the desired length, please use the drill bit to drill a hole into the centre of the bottom of the post – this is to locate your post onto the bolt down or spiked foot.

All pergolas purchased with bolt down or spiked feet will be cut to 2.4m, unless requested otherwise.

Features:

• Easy assembly with the minimum of tools required.
• High quality pressure treated Northern European Redwood.
• Solid 95mm x 95mm corner posts.
• 34mm x 140mm Runners and Rafters.
• Corrosion treated, heavy duty fixings.
• Custom sizes available.

Dimensions:

• Height: 2700mm
• Width: 2400mm (Overall length of Rafters)
• Length: 2400mm, 3000mm, 3600mm, 4200mm, 4800mm, 5400mm, 6000mm, 6600mm, 7200mm or 7800mm. (Overall length of Runners)

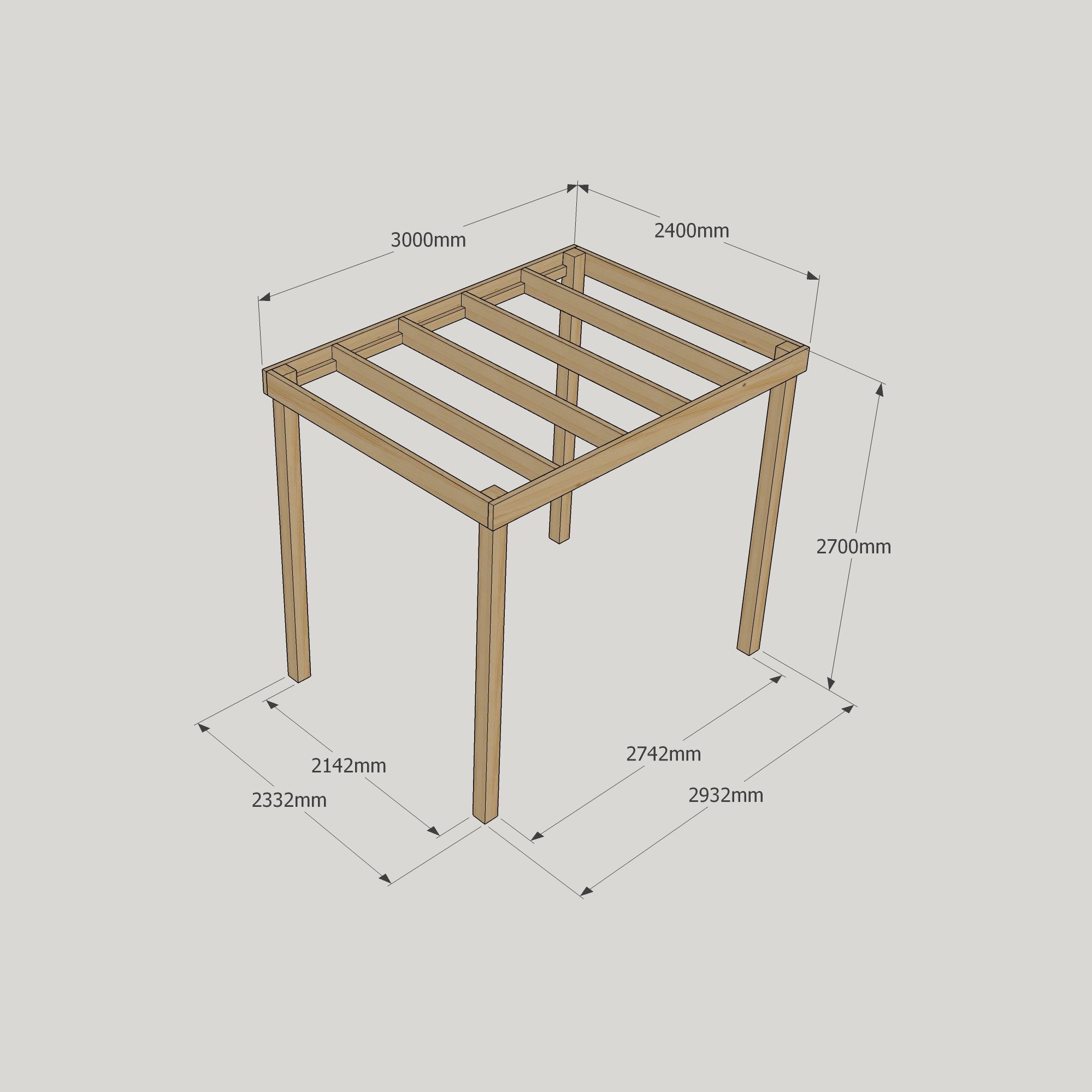

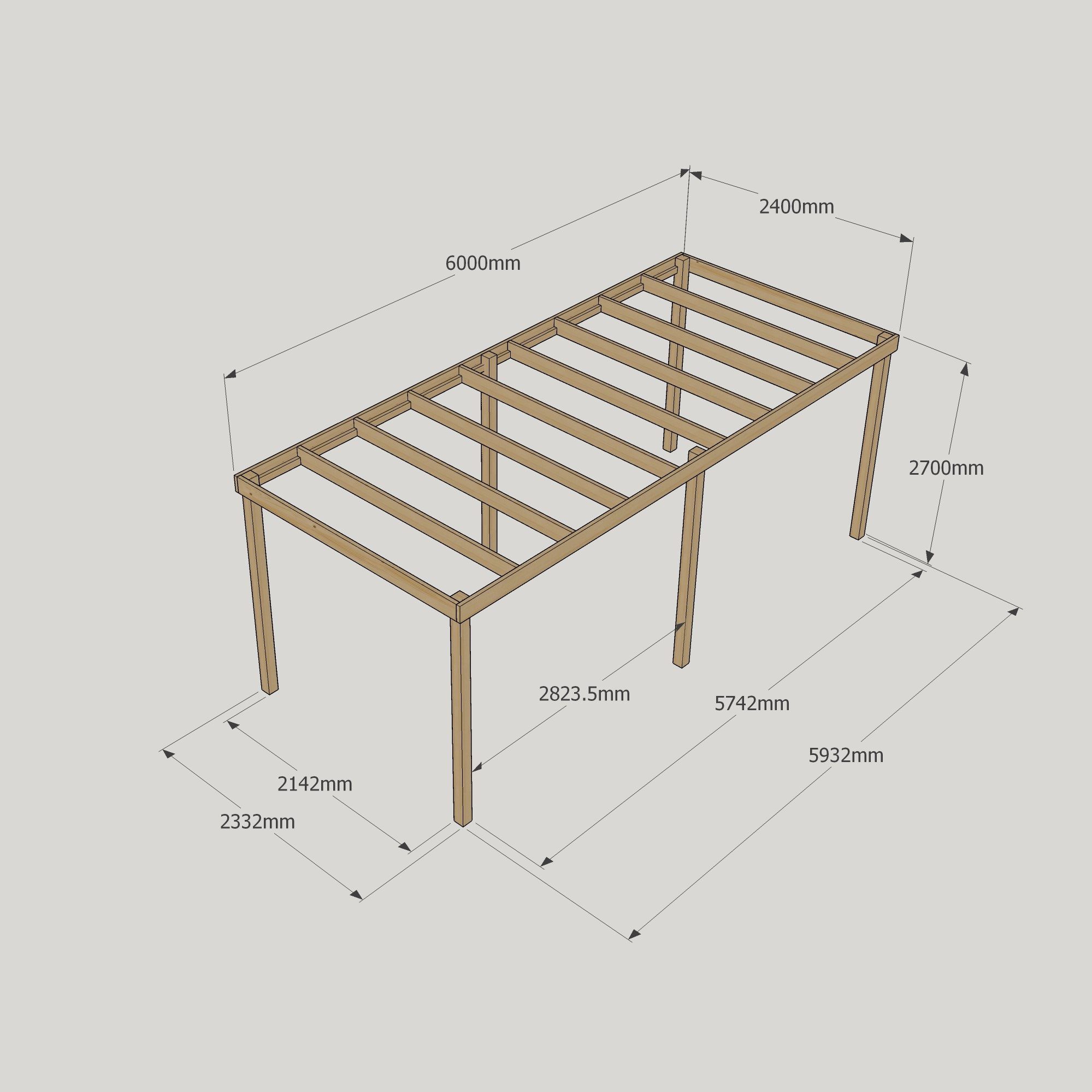

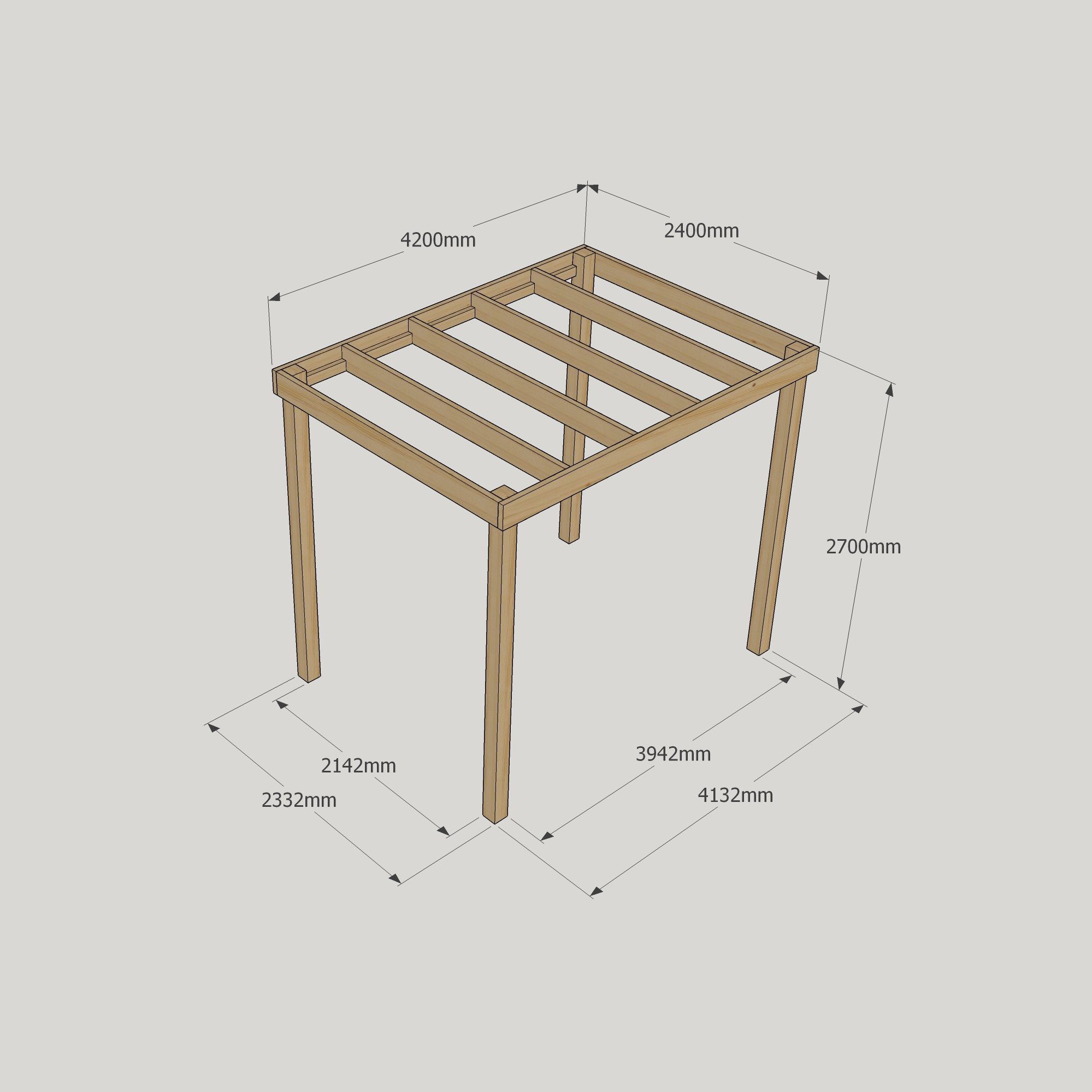

Please ensure you have checked the dimensional drawing for your chosen size and the component parts drawing before completing your purchase as the sizes listed are those of the rafters and runners, not the post dimensions. The post positions can be found on the dimensional drawings.

If you require a roof to fit your pergola, please contact us regarding our polycarbonate roof kits.

Unable to find the the size you need? Please ask us about our custom sized pergolas.

Rafter Quantity / Rafter Gap Measurement

Delivery:

• Currently 10 to 15 working days

Please note: The product colours shown are representative only and may differ on the actual product due to natural variations in the timber used.
