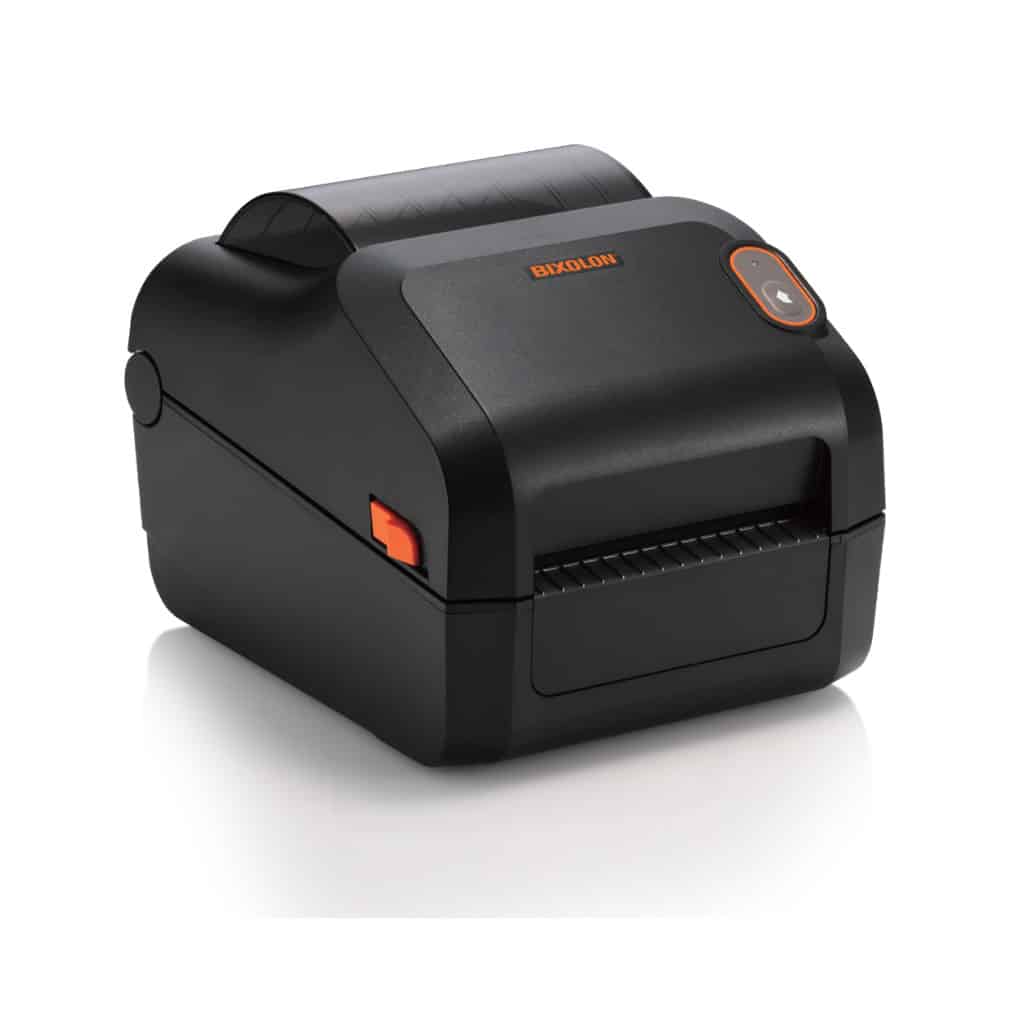

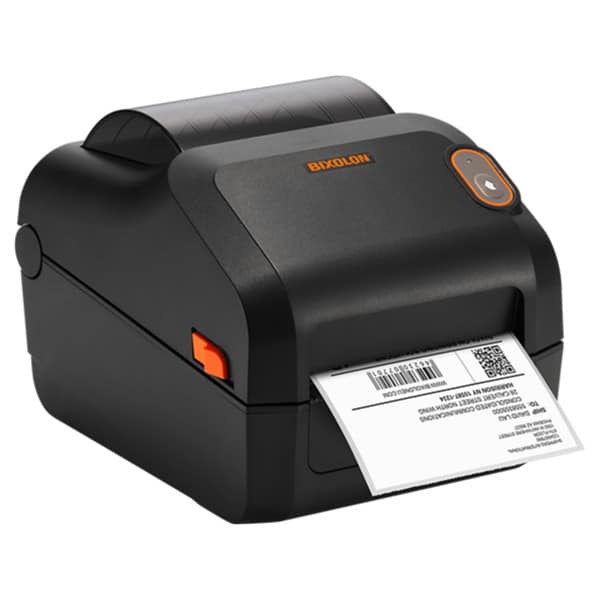

Bixolon XD3-40d Direct Thermal Desktop Label Printer

Compact and Affordable.

The entry-level XD3-40d is a new Direct Thermal 4-inch (118mm) Desktop workhorse offering day-to-day quality 203 dpi output across your logistics, warehousing and manufacturing installations.

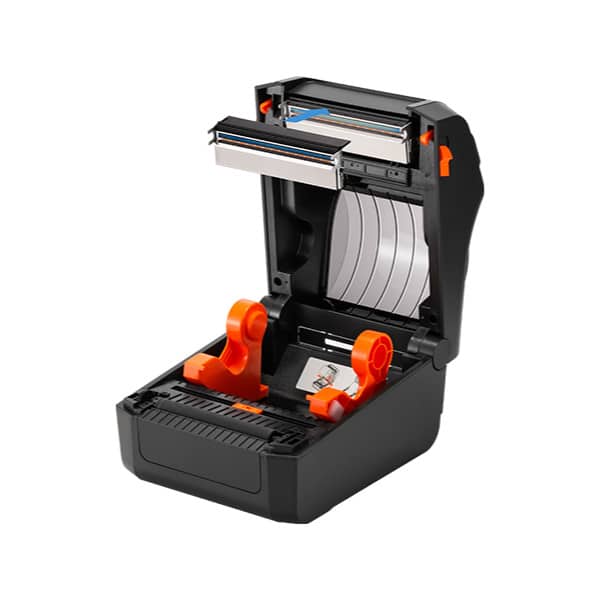

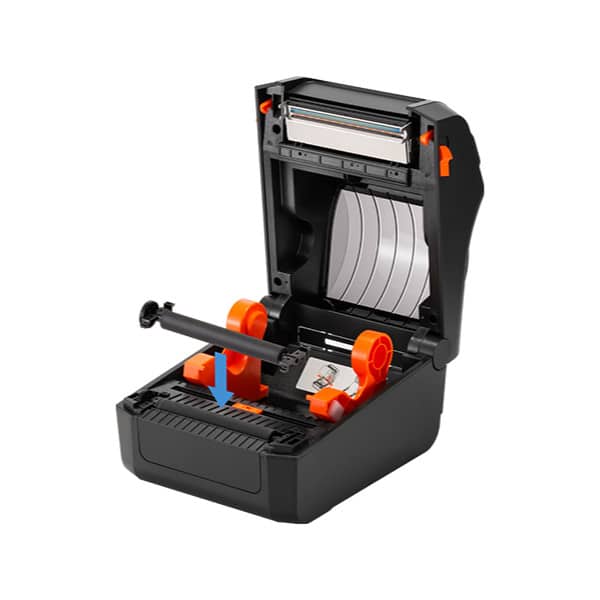

Simple to setup and use, the XD3-40d also benefits from tool-less printhead and platen replacement to ensure uptime is maximised.

Product or asset labelling, Document management, patient and quest identification, Shipping and logistics printing, the XD3-series offers a balance of cost and performance, including print speed, tear and peel media handling, plus networked options.



Basic Functions

• Printing speed up to 5 ips (127 mm/sec)
• Fully compatible with market-leading programming languages
• Supporting stand-alone configuration mode by visual LED
• Smart switch programming languages without setting the mode



User-Friendly Design

• Easy paper loading with adjustable paper guide and holder
• Simply set up media sensor

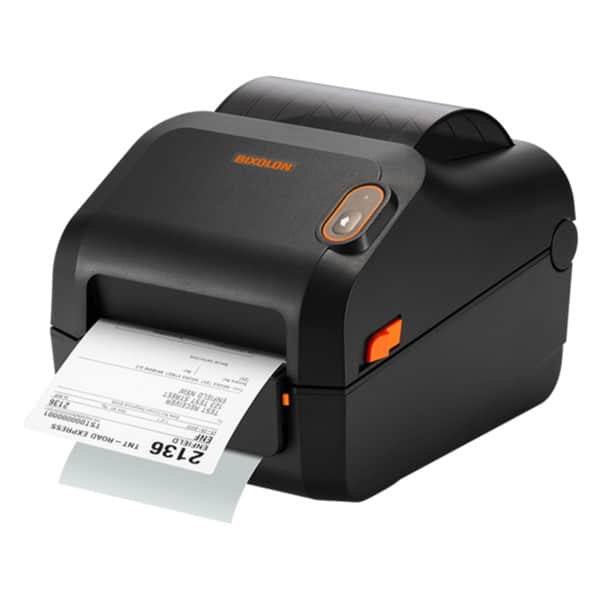

• Optional peeler
• Compatible with label design software; BIXOLON’s Label Artist™, Seagull’s BarTender® and BarTender® UltraLite for BIXOLON



Printer Specifications

• Print Method: Direct Thermal
• Print Speed: Up to 5 ips (127 mm/sec)
• Print Resolution: 203 dpi
• Print Width: Up to 104 mm
• Print Length: Up to 1,000 mm
• Sensor: Transmissive(Fixed), Reflective(Adjustable), Head open



Media Characteristics

• Media Type: Gap, Black Mark, Notch, Continuous, Fan-Fold
• Media Width: 15 ~ 118 mm
• Media Roll Diameter: Up to 127 mm
• Media Thickness: 0.06 ~ 0.20 mm
• Supply Method: Easy Paper Loading
• Inner Core: 25.4 ~ 38.1mm



Physical Characteristics

• Dimensions: H168mm W181mm D222mm
• Weight: 1.7kg (3.75 lbs.)
• Power: EnergyStar Certified, External Power Adaptor 100-240V AC, 50/60Hz
• Guide: Combined paper holder and guide



Performance Characteristics

• Memory: 64 MB SDRAM, 128 MB Flash
• Interface Standard:
  • Standard: USB
  • Optional: USB + Serial + Ethernet

Environment Characteristics

• Temperature
  • Operating: 0 ~ 40℃ (32 ~ 104℉)
  • Storage: -20 ~ 60℃ (-4 ~ 140℉)
• Humidity
  • Operating: 10 ~ 80% RH
  • Storage: 10 ~ 90% RH

Software

• Emulation: SLCS™, BPL-Z™, BPL-E™
• Driver / Utility
  • Windows Driver (Europlus/Seagull)
  • Linux / Mac CUPS Driver
  • Virtual COM USB/Ethernet Driver
  • Utility Program
  • OPOS Driver
  • Bartender Ultralite
  • LabelArtist™-II
• SDK
  • Windows SDK
  • Linux SDK



Fonts / Graphics / Symbologies

• Fonts
  • 10 SLCS™ Resident Bitmap Fonts
  • One SLCS™ Resident Scalable Font
  • 16 BPL-Z™ Resident Bitmap Fonts
  • One BPL-Z™ Resident Scalable Font
  • 5 BPL-E™ Resident Bitmap Fonts
  • 23 Code Page
  • Unicode supported
  • (UTF-8, UTF-16LE, UTF-16BE)



• Graphics: Supporting user-defined fonts, graphics, formats and logos



• Barcode Symbologies
  • 1D: Codabar, Code 11, Code 39, Code 93,
  • Code 128, EAN-13, EAN-8, Industrial
  • 2-of-5, Interleaved 2-of-5, Logmars, MSI,
  • Plessey, Postnet, GS1 DataBar (RSS-14),
  • Standard 2-of-5, UPC/EAN extensions,
  • UPC-A, UPC-E, IMB
  • 2D: Aztec, Codablock, Code49, Data Matrix,
  • MaxiCode, MicroPDF417, PDF417,
  • QR Code, TLC39

Accessories

• Options: Peeler,External Paper Supply



Download Specification Sheet

• Bixolon-XD3-40d-Datasheet
