HSDS – Features

22″ Hand Sanitiser Network Android Advertising Display

Hand Sanitising Digital Signage

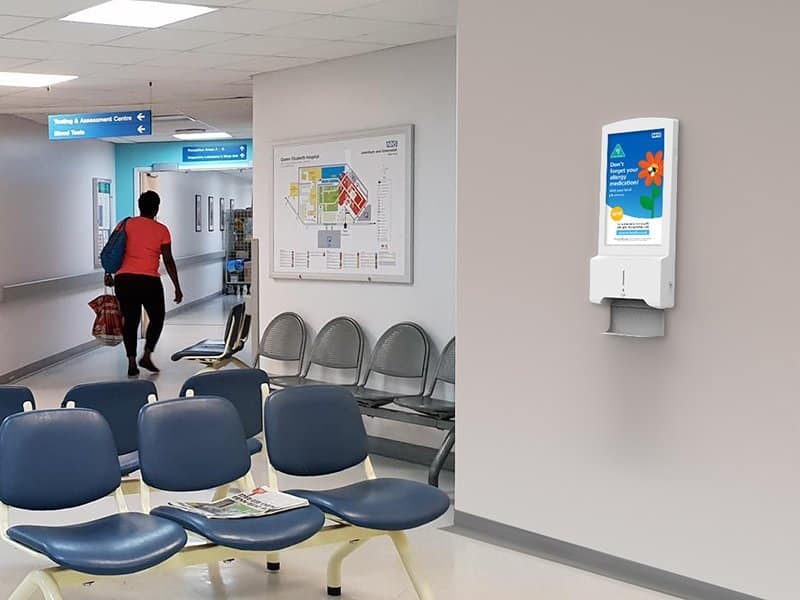

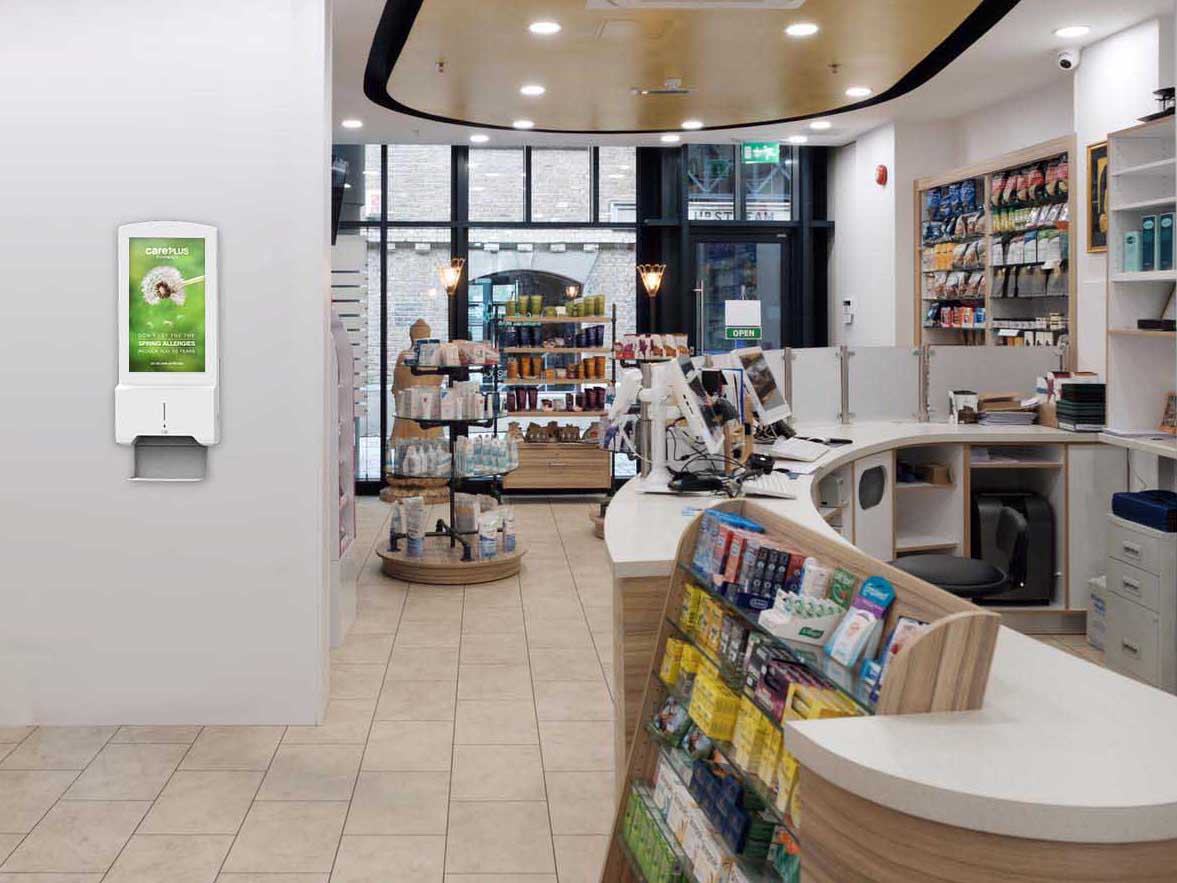

In areas where hygiene is key, and hand washing facilities are not available, these displays are ideal. They combine a hand sanitising station* with a versatile Digital Signage solution.

HSDS – Hand Sanitising Digital Signage

Contactless Usage

These displays come with a network upgrade and 1 year free subscription as standard so can be updated from our online CMS portal. They feature no external buttons or controls and have an automated on/off power timer to minimise contact following installation.

HSDS – Contactless Usage

FREE Network Upgrade and 1 Year Subscription

We have packaged this display with a free network upgrade and 1 year subscription to our online CMS software. As you don’t have to touch the display to update it this is a truly contactless solution. You can also purchase 3 additional year’s subscription at the point of purchase or make a one off payment for a lifetime licence.

Features:

Fully Automated Dispensing

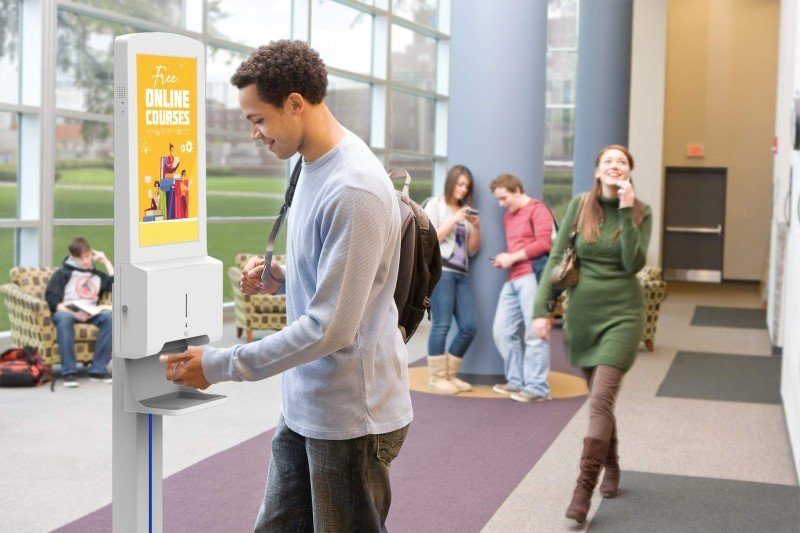

The fully automated design removes the need to touch the dispenser, simply place your hand under the dispenser and a measured dose of sanitiser will be dispensed. The dispense valve is non-spray, non-clog and non-drip.

HSDS – Fully Automated Dispensing

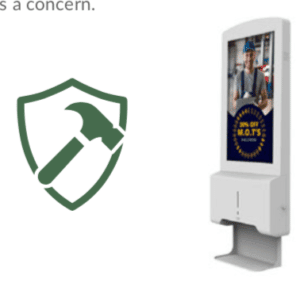

Robust Steel Enclosure

This solution features a full metal enclosure making it perfect for any commercial or public environment, especially in locations where impact is a concern.

HSDS – Robust Steel Enclosure

Safe Tank Capacity

Most standard hand sanitiser stations have a capacity below one litre; this is because it reduces the risk of evaporation caused by larger tanks. This is important because as the sanitiser evaporates the alcohol content reduces – decreasing the effectiveness of the sanitiser.

HSDS – Safe Tank Capacity

24/7 Usage

This is a true commercial grade solution. Built using a commercial grade LCD panel and components it is designed to be in constant use.

HSDS – 247 Usage

Online Content Management System

Using our user-friendly cost-effective software solution you can combine multiple media zones (images, videos, webpages etc.), social media feeds, scrolling text and RSS feeds for latest news.

HSDS – Online Content Management System

Safe Maintenance

The easy front access door to allows you to conveniently re-fill the sanitiser tank however to carry out maintenance on the internal components you must remove the rear panel. This two-way access ensures that no electronics are exposed when the tank is being re-filled, preventing a potential fire hazard or any damage to the display

HSDS – Safe Maintenance

Plug and Play

If your internet connection goes down these displays can also be updated by copying your images and videos onto a USB stick and inserting into the display. Your images and videos will then play in a continuous loop.

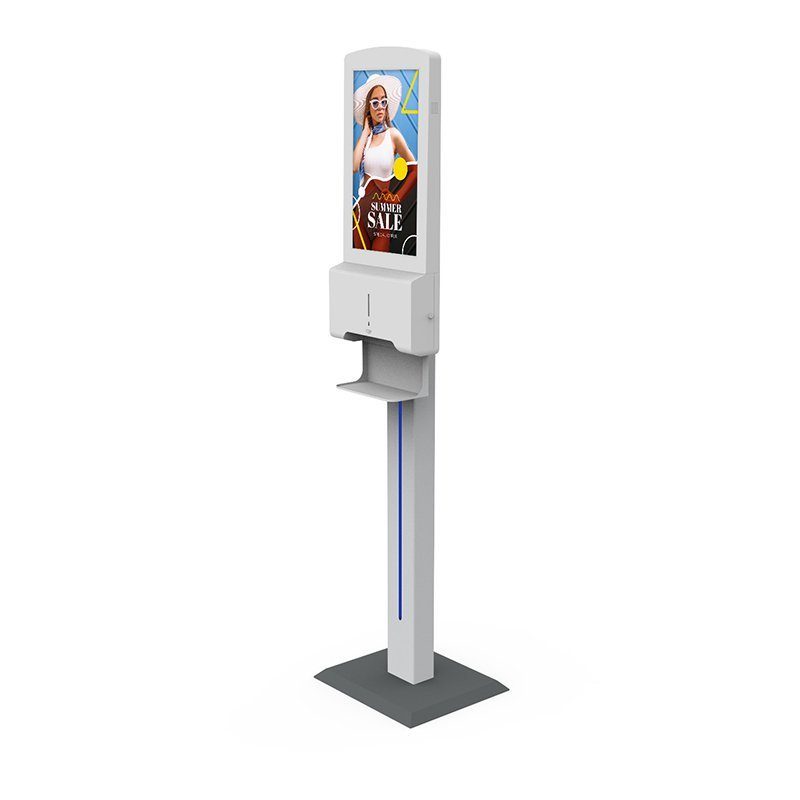

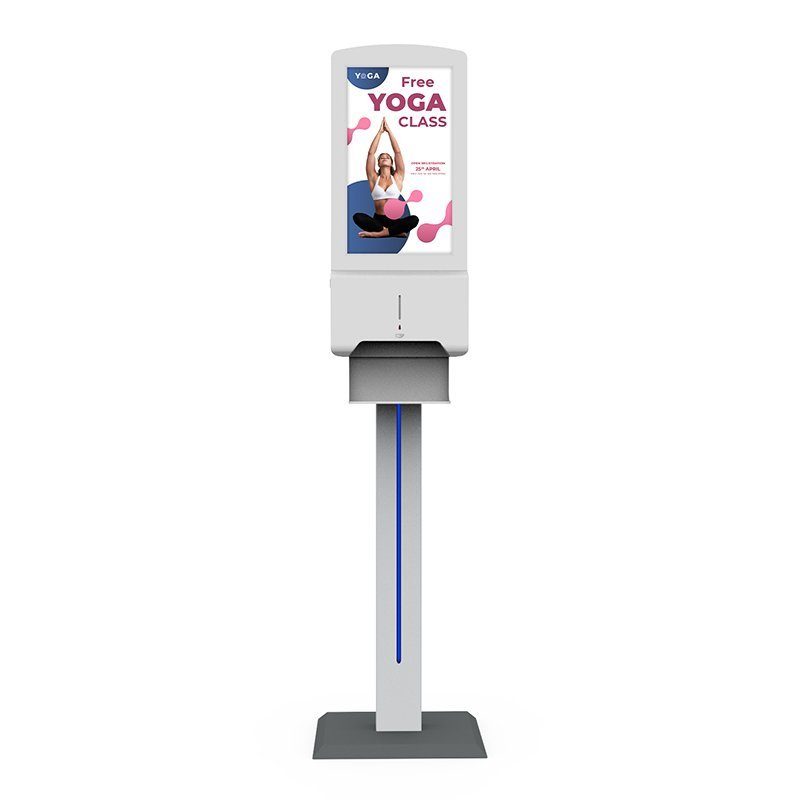

Optional Stand Available

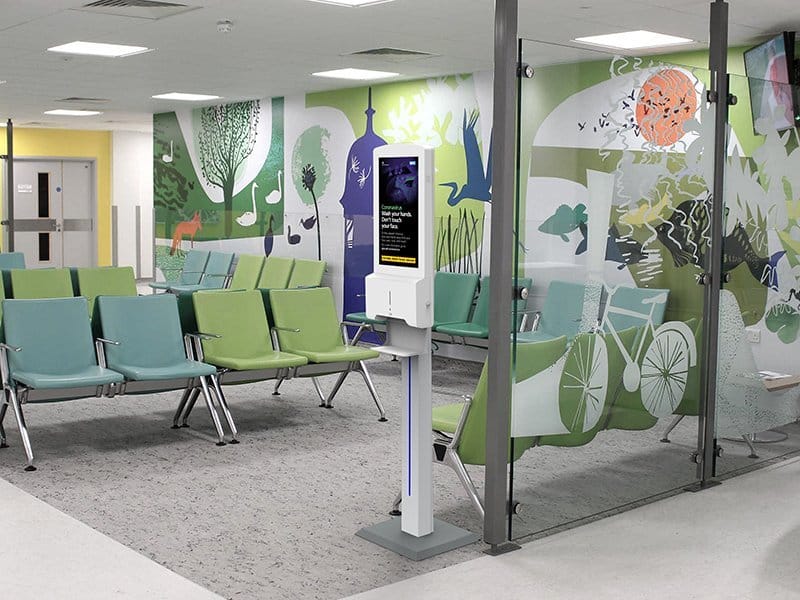

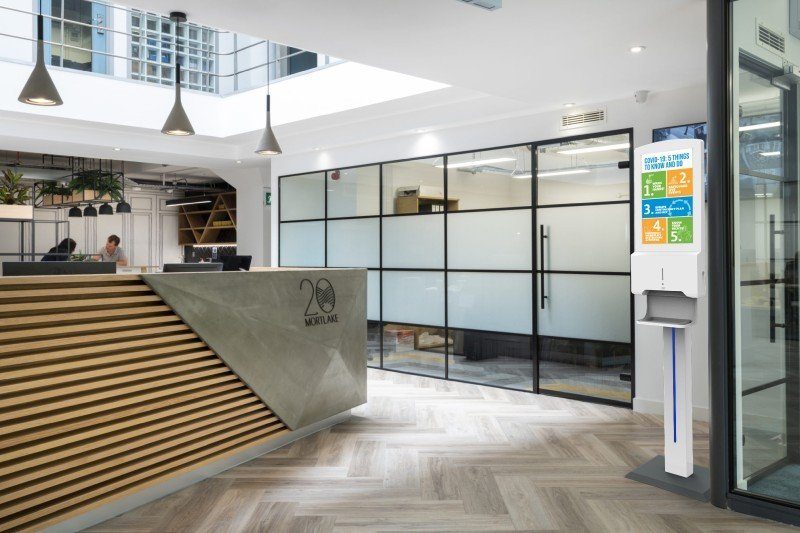

The display can be wall mounted as standard or mounted onto a stylish floor stand, for easy portability. The modern stand also features an illuminated blue LED strip.

HSDS – Optional Stand Available

Specifications:

HSDS – Features List

22 Inch – HS22A

• Display Area: 266.95×475.3
• Unit Size (WxHxD mm) 350x820x101.2
• Package Size (WxHxD mm) 435x885x181
• Net Weight (kg) 11
• Gross Weight (kg) 13
• VESA 200×200

Panel

• Resolution: 1080×1920
• Aspect Ratio: 16:9
• Brightness (cd/m²): 450
• Colour: 16.7M
• Viewing Angle: 178°
• Contrast Ratio: 5000:1
• Response time: 5ms
• Lifespan (hours): 70,000

AV Inputs

• Video: HDMI, VGA
• Audio: Audio Socket (3.5mm)

Power

• Power Consumption (W): 17
• Power Input: AC110~240V (50Hz~60Hz)

Environmental

• Operating Temperature: 0°C to 50°C
• Storage Temperature: -30°C to 60°C
• Operating Humidity: 10% to 80%
• Storage Humidity: 5% to 95%

Computer

• Media Formats: Video (MPG, AVI, MP4, RM, RMVB, TS), Audio (MP3, WMA), Image (JPG, GIF, BMP, PNG)
• Media Resolution: 1920×1080/1080×1920
• Internal Memory: 6GB
• CPU: Quad-Core [email protected]
• GPU: Mali-T760 MP4 @600MHz
• RAM: 2GB DDR3
• ROM: 8GB NAND
• USB: USB2.0 HOST (x2)
• LAN: 10/100M Ethernet
• Wi-Fi: 802.11b/g/n
• OS: Android 5.1.1
• Graphic Engine: OpenGL ES 1.1/2.0/3.0/3.1, OpenCL 1.1, Renderscript, Direct3D 11.1

Dispenser

• Capacity (ml): 700 (each dose 0.8-1)
• Sensing Distance (cm): 5
• Solution Type: Liquid or Gel
• *Hand sanitising liquid or gel not included

Accessories

• Included: Drip Tray, Scheduling Software, Remote Control, Key, User Manual
• Optional: Floor Stand, Touch Screen Version, 4G Upgrade

Standards

• Certification: CE, FCC & ROHS
